Gigabit POE injector 2P TL-POE160S Tp-Link

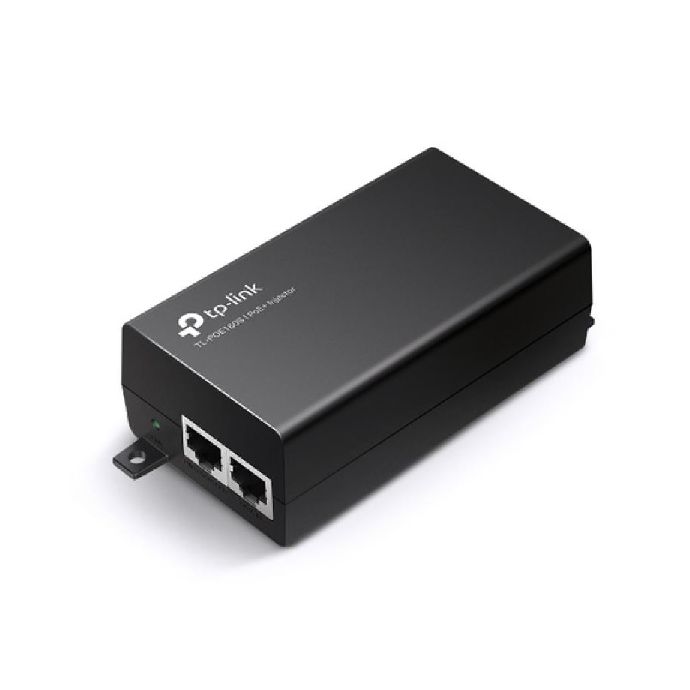

Product Picture

Model

TL-POE160S

Standards

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

Ports

1 10/100/1000Mbps RJ45 data-in port

1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Basic Function

Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements

Wall-mounting and desktop installation supported

Plug-and-Play

Power

Input: 100-240 V, 50/60 Hz

Output: Auto-determine the necessary power requirements (max. 30 W)

LED Indicator

ON: Supplying power normally

Dimensions ( W x D x H )

4.9*2.3*1.4 in (125*59.4*36.8 mm)

FCC, CE, RoHS

Package Contents

TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits

Environment

Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing

Storage Humidity: 5% to 90%RH non-condensing
