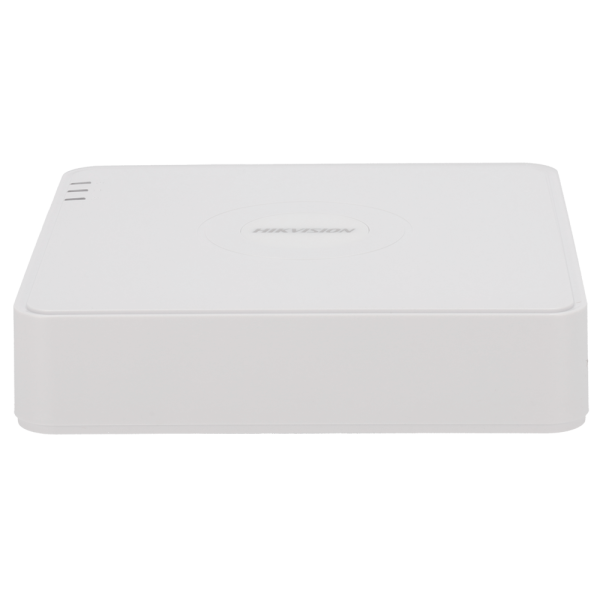

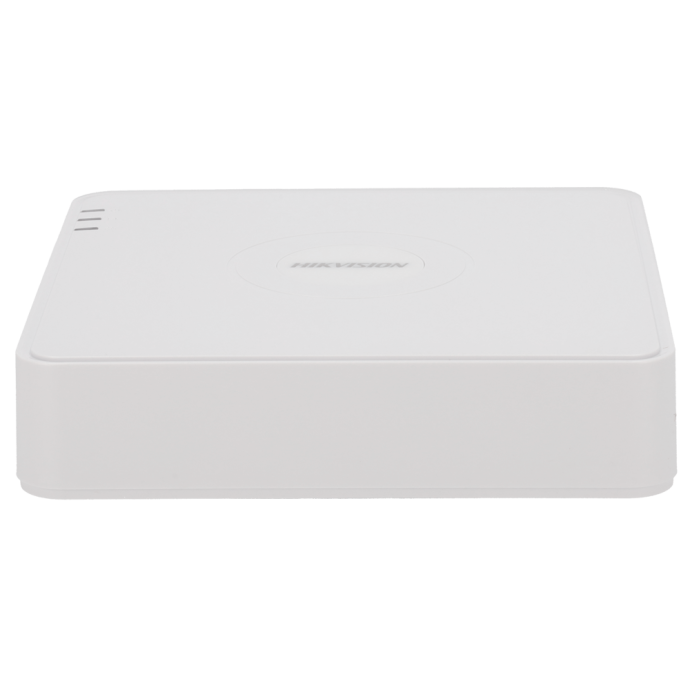

Hikvision 4CH Hybrid 1CH IP 2Mpx Motion Detection DVR Recorder

SKU
DS-7104HGHI-M1
Brands: Hikvision
€60.98 Tax included
Hikvision
Availability: In stock
24/48 Hours

Grabador DVR 4CH Híbrido 1 CH IP 2Mpx Det. Movimiento de Hikvision

Este grabador de Hikvision ofrece soluciones de seguridad eficientes y de alta calidad, tanto para hogares como para pequeñas empresas.

Tiene 4 canales BNC(HDTVI/HDCVI/AHD/CVBS) y 1 canal IP adicional (hasta 5 canales sustituyendo todos los canales BNC).

Permite la grabación y gestión de imágenes de cámaras de seguridad, garantizando una vigilancia constante y confiable. Compatible con H.256 Pro+/H.265/H.264+/H.264, optimizando el almacenamiento sin comprometer la calidad.

Resolución de 2Mpx, con 1 canal RCA y soporte de audio a través de cable coaxial. Puede almacenar 1 disco duro de hasta 4TB. Salida de vídeo HDMI y VGA con resolución máxima de 1920x1080 a 60Hz.  Cuenta con un puerto RJ45 ethernet 10/100 Mbps.

Es capaz de analizar y clasificar objetos en movimiento, diferenciando entre personas y vehículos. Reduciendo notablemente las falsas alarmas provocadas por elementos como animales o cambios de iluminación.

Technical Specifications of the Hikvision 4CH Hybrid 1 CH IP 2Mpx Motion Detection DVR Recorder

Brand HIKVISION
Range Value
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration 1 Additional IP CH: Up to 5 IP channels (1080p), substituting all BNC channels
Available bandwidth 64 Mbps
Video outputs 1 HDMI Full HD and 1 VGA, simultaneous;
Display resolution HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz
VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz
Audio inputs 1 Channel RCA
4 coaxial audio channels
Audio outputs 1 Channel RCA
Bidirectional audio Reusing the audio input
Audio Bit Rate 64 Kbps
Audio compression G.711u
Video compression Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
IP channels: H.265+ / H.265 / H.264+ / H.264
Recording resolution 1080p Lite/ 720p/ 720p Lite/ WD1/ 4CIF/ [%VAR%] VGA/ CIF
Input resolution HDTVI: 1080p (25~30 fps), 720p (25~30 [%VAR%] fps)
HDCVI: 1080p (25~30 fps), 720p (25~30 [%VAR%] fps)
AHD: 1080p (25~30 fps), 720p (25~30 [%VAR%] fps)
CVBS: PAL/NTSC
Main Stream coding For the 1080p stream:
1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N))
For the 720p stream:
720p/WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N))
For SD stream:
WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N))
Extra Stream coding 4CIF (15 fps)
CIF/QVGA (25 fps (P), 30 fps (N))
Video Bit Rate 32 Kbps at 4 Mbps
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms Does not have
Motion Detection Motion detection 2.0 with human and vehicle classification applied in motion detection.
Available on all analog channels.
Recording method Manual, programmed, motion detection
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory 1 SATA HDD 3.5" of up to 4 TB (not included)
Communication 2 x USB 2.0 (rear side) / 1 x RJ45 (Ethernet)
Remote connections 32
Remote access Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central
Power DC 12 V, 1.5 A, ≤ 16 W (no HDD)
Operating temperature -10° ~ +55° C
Dimensions / Weight 45 (H) mm x 200 (W) mm x 200 (D) mm / ≤ 0.8 Kg (w/o HDD)
Colour White
More Information
EAN6931847170684
Hight0.240
Length0.320
Width0.080
SECURITY - SYSTEMHibrid 5 on 1
SEGURIDAD - SERIE2Mpx
IncludedMouse, Power supply
Event notifierNo
Audio in ports1
Product BrandHikvision
