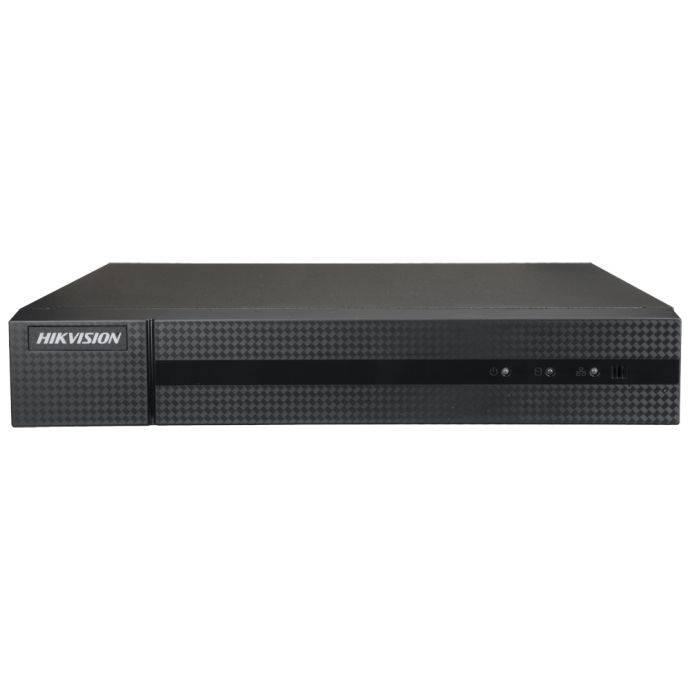

NVR Recorder for IP Cameras 32CH 8MPx

SKU
HWN-5232MH
Brands: Hikvision
€298.14 Tax included
Free shipping
(Iberian Peninsula)
Availability: In stock
24/48 Hours

Recorder for IP NVR cameras 32 video channels HWN-5232MH



This 32-channel NVR recorder has a maximum resolution of 8 Megapixels. You can connect surveillance IP cameras.

HDMI 4K (3840 x 2160) and VGA connection, allowing up to 2 6TB SATA hard drives (Not included). It has alarms (4 inputs/1 relay).

This recorder is compatible with ONVIF, allowing connections with cameras with this protocol.




Box contents:

*Hikvision NVR Recorder
*Mouse
*Power cord
*CD with manual and software

-
+

Technical Specifications of the Recorder for IP NVR Cameras 32 video channels HWN-5232MH



Brand Hikvision
Range HiWatch Series
Inputs for IP cameras LAN port up to 32 channels
IP compatible cameras HIKVISION, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI 4K, 1 VGA
Video compression format H.265+ / H.265 / H.264+ / H.264
Display resolution 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Decoding capacity 2CH @ 8 MP (25fps) / 4CH @ 4MP (30fps) / 8CH @ 1080p (30fps)
Total bandwidth 256 Mbps downstream / 160 Mbps upstream
Main Stream recording 8MP/6MP/5MP/4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms 4 inputs / 1 relay
Recording method Manual, programmed, motion detection, alarm
External Backup USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory 2 SATA HDD 3.5" of up to 6 TB (not included)
Communication 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Remote access Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power DC 12 V, 50/60 Hz
Dimensions / Weight 52 (H) x 385 (W) x 315 (D) mm / 1.0 Kg (without HDD)
More Information
EAN 6954273664947
Hight 0.440
Length 0.140
Width 0.390
SECURITY - SYSTEM IP
SERIE 8Mpx
Included Mouse, Power supply
Event notifier No
No. CCTV Recorder Inputs 32 IP
Product Brand Hikvision
Write Your Own Review
You're reviewing:NVR Recorder for IP Cameras 32CH 8MPx
Your Rating
File Label Size Download
pdf Ficha Técnica Receptor NVR 5232MH 286.5 KB Download
