main product photo

GTLAN Surface Rosette with RJ45 Female Connector

SKU
GTL50RU16
Brands: GTlan
13% Discount for professionals
GTlan
Availability: Out of stock
Consult
Be the first to review this product

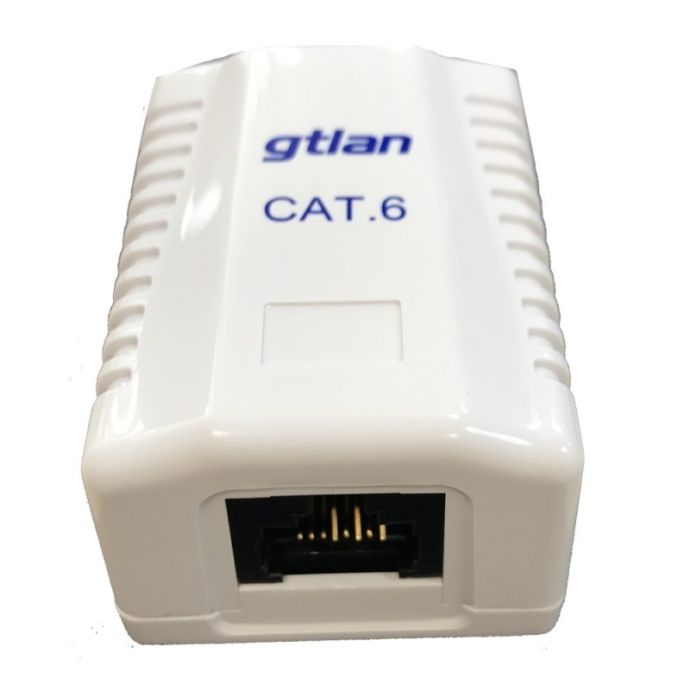

White Surface Rosette with GTLAN Female RJ45 Connector

This socket is used in local area networks to connect the Ethernet data cable to a wall outlet. The rosette has a female RJ45 connector.

The rosette is white. Its installation is very simple. RoHS compliant. It has a sleek and modern design, suitable for use in a wide variety of environments, homes, offices and other commercial facilities.

This GTLAN surface rosette complies with the ICT2 regulations in new buildings according to the new regulation of common telecommunications infrastructures (RD 346/2011).



Technical Specifications of the GTLAN White Surface Rosette with RJ45 Female Connector



Product color White
Working temperature margin -10 to 65º C
Packaging Unitary
Dimensions without packaging 30x39x54 mm
CE YES
RoHs YES
Current rate April 2023
Category C-6
Type of installation Surface
No. of departures 1
Cable entry Lateral
Connector type RJ45
Cable type Rigid
Shielding No (UTP)
Durability 750 connections
Connection 110
Section AWG 23-26
Coating 50µ gold
Body material Polycarbonate
Contact material Phosphor bronze
Specifications With RJ45 C-6 UTP connector(s) (included). Wall mounting with screws (included).
Standards ANSI/TIA/EIA 568.2 Rev. E (Cat.6), ISO/IEC 11801-1 (Class E), UL94-V0






















More Information
More Information
EAN 8435481003745
Hight 0.000
Length 0.000
Width 0.000
System DTT Data
Serie Female Connect.
Color White
Type Connector
Connection type RJ45 Female
Product Brand GTlan
Reviews
Write Your Own Review
You're reviewing:GTLAN Surface Rosette with RJ45 Female Connector
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica PAU/Roseta de Superficie con Conector RJ45 Hembra de GTLAN 4.7 MB Download
