H30Crystal Field Meter DVB-S / S2 / T / T2 / C + F.O. Selective + Accessories

SKU
TEL593625
Brands: Televes
€2,660.73 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

H30Crystal DVB-T/T2 + S/S2 + C + F.O. Field Meter Selective (Category F)

Price valid until 31 December 2024, by handing in your old field meter. If you are a telecommunications professional, register on our website to get the best price.

The H30Crystal is the extension of the H30 field meter; They are portable and compact field meters. The glass range incorporates the functionality of optical measurements, making it a very complete measurement device for installers.

This meter has all the measurement standards: DVB-S/S2 satellite, DVB-T/T2 terrestrial, DVB-C cable and Selective Fiber Optic, making it a very complete measurement equipment ideal for installation, maintenance and resolution of incidents in fiber optic networks, TV and coaxial networks.

Instrumentation valid for Category A and Category F installers.

With a 2.8” TFT color screen that makes measurements much easier. 2300mA Li-ion battery that provides us with an autonomy of more than 4 hours. The meter is very complete and can withstand falls of up to 1 meter on concrete.

As interfaces it has: Bluetooth, WiFi (2.4 and 5 GHz), 1Gb Ethernet, USB 2.0.

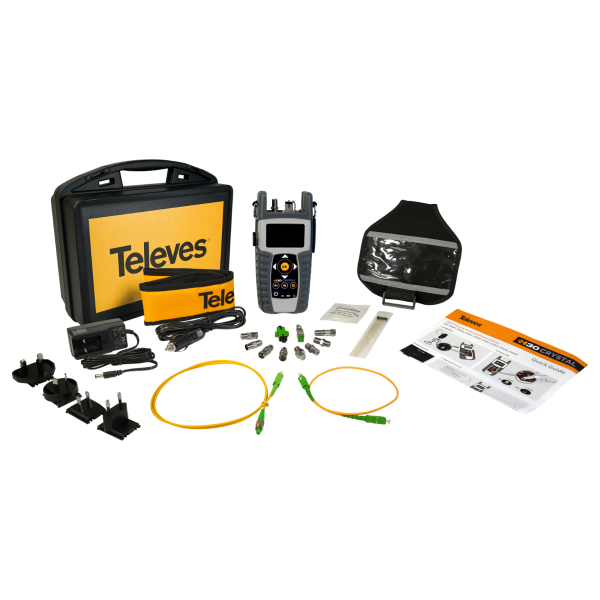

It comes equipped with many accessories: including a carrying case, a waterproof case and a 3-meter coaxial extension. A universal bracelet is included for mobile phones up to 6", so as to make sure that using a smartphone becomes easier.

-
+

Technical Specifications of the H30Crystal Full DVB Field Meter (-S/S2 + -T/T2 + -C) F.O. Selective (Category F) (Includes Briefcase and Smartphone Armband)



H30Crystal
Mechanical Specifications
Screen 2.8” TFT 400 x 240 full color
Weight 550 g.
Dimensions 175x100x52 mm / 6,9x3,9x2 (HxWxD)
AC Adaptor Input: 100-240V~ 50-60Hz Output: 12VDC, 2A
Battery Li-ion (7,2VDC, 2300mAh)
Baterry range >4hours without LNB powering
Interfaces Bluetooth, Wi-Fi 2.4GHz / 5 GHz, Ethernet 1Gb
USB 2.0 for Data log download and software upgrades
Resilience It withstands drops From 1 m (3.2 ft) onto concrete on all sides
Storage capacity 400 MB (internal) for measurements
Impedance F-type connector - 75 Ohm
More Information
EAN 8424450279793
Hight 0.350
Length 0.160
Width 0.300
System Field Meters
SERIE H30Crystal
Color Gray
DVB-C Yes
DVB-S Yes
DVB-T Yes
Fibra Yes
CCTV No
Product Brand Televes
