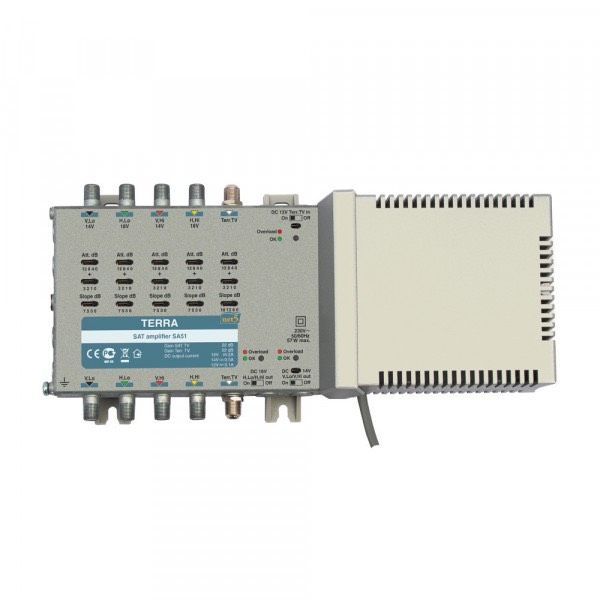

Header Amplifier 4FI+ terrestrial 22dB Slope Adjustment

SKU
TESA51
Brands: Terra
€182.26 Tax included
Availability: On request
1 to 7 days

Header Amplifier 4FI+ terrestrial 22dB Slope Adjustment TE-SA51

This amplifier is designed for use in 5-input multiswitch-based SMATV systems. It has 4 satellite inputs and 1 DVB-T/Radio input. It allows to amplify and equalize the level of the signal before distribution.

You will be able to create a multiswitching system to distribute signals to hundreds of outlets.

The signal level adjustment is carried out through dedicated selectors, guaranteeing the stability of the settings.

Very efficient cast iron casing thanks to its class A shielding.

-
+

Technical Specifications of the Header Amplifier 4FI+ terrestrial 22dB Slope Adjustment TE-SA51





Entradas:

4x 950 MHz ... 2400 MHz ,

1x 47 MHz ... 790 MHz

Salidas:

V.Lo, H.Lo, V.Hi, H.Hi, RTV

Amplificación de SAT:

22 dB

Ajuste de la ganancia SAT:

0 ... 15 dB a un paso de 1 dB

Amplificación de SAT (precorrección del cable):

0 / 3 / 5 / 7 dB

Amplificación de TV:

22 dB

Ajuste de la ganancia TV:

0 ... 15 dB a un paso de 1 dB

Amplificación de TV (precorrección del cable):

0 / 6 / 12 / 18 dB



Aislamiento:

•  Entre entradas de SAT/SAT 30 dB

•  Entre entradas de TV/SAT 30 dB

Ruido propio:

< 9 dB

Nivel de salida máximo SAT:

114 dBµV

Nivel de salida máximo TV:

109 dBµV



Alimentación de dispositivos:

14 V DC / 0.5 A ,

18 V DC / 2 A ( max. 1 A para 1 línea )

Alimentación de los preamplificadores:

12 V DC / 0.1 A

Paso DC (máx.):

2 A

Alimentación:

230 V AC, 50 / 60 Hz

Consumo de energía:

5 W

More Information
Hight 0.000
Length 0.000
Width 0.000
System SAT Multisatellite
MANUFACTURER SERIE SAT Terra
Color White
Type Broadband station
Entorno Interior
Input signal FI, UHF, VHF
# Inputs 5
Outputs 5
Gain 22
Max. output level Ganancia (dB/uV) 109
LTE compatible No
Current bypass Satellite, Terrestrial
Product Brand Terra
