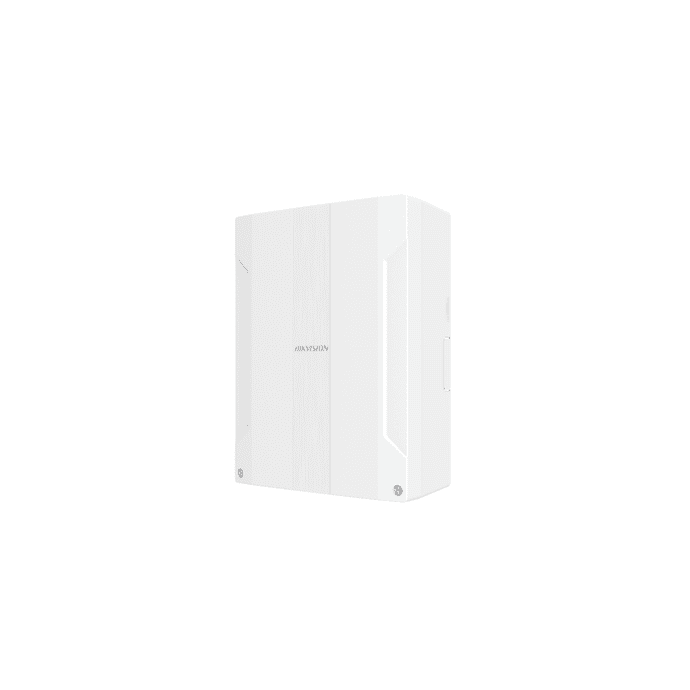

Hikvision AXPRO Wireless Multiple Input/Output Transmitter

SKU
DS-PM1-I16O2-WE
Brands: Hikvision
€129.01 Tax included
Availability: On request
1 to 7 days

Hikvision Multi IO Transmitter with LED Display

This device is an excellent choice for your Hikvision alarm system. It allows you to connect up to 16 wired devices and 2 alarm outputs allowing your wired devices to be adapted via the AX PRO radio system according to your needs.

It is ideal when we want to integrate our wired security system with other devices and expand our alarm system to AX PRO.

Uses two-way radio communication at 868MHz with maximum distances of up to 1.1km. Supports battery backup and HIk-Connect app for supervision. LED indicators show the status of the device (power on green, fault on amber and signal strength on green or red). It has front and rear anti-tamper system.

It is prepared for wall mounting, with housing made of white plastic

-
+

Technical Specifications of Hikvision Multi IO Transmitter with LED Display

  • Two-way radio communication at 868 MHz
  • 2GFSK RF modulation
  • Radio range up to 1100 metres in the open field
  • Device status LED
  • End-of-line resistors: 1K, 2.2K, 4.7K, 8.2K (NO/NC)
  • Serial port
  • 16 built-in inputs and 2 outputs: can be applied to connect wired detectors
  • 2 12V power supply outputs: can be used to power external wired detectors
  • Front and rear tamper tamper
  • Power supply: 100V ~ 240V AC
  • Power consumption: 30W
  • Operating temperature: -10°C ~ +55°C
  • Operating humidity: 10% ~ 90%.
  • Space for backup battery (12V, 7Ah, 150 x 64 x 94 mm)
  • Plastic case
  • Colour: white
  • Dimensions: 199 (W) x 261 (H) x 86,4 mm
  • Weight: 975 g (without battery), 3 kg (with battery)
  • Wall mounting
More Information
Hight 0.000
Length 0.000
Width 0.000
System AX PRO
SERIE Actuators
Color White
Product Brand Hikvision
