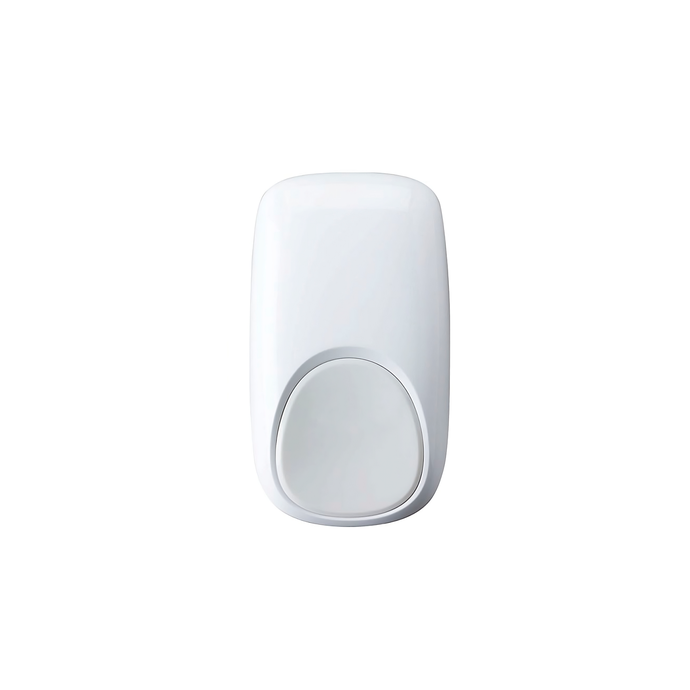

Honeywell Dual Tec Grade 3 Volumetric Motion Detector

SKU
DT8016AF4
Brands: Honeywell
€48.79 Tax included
Availability: On request
1 to 7 days

Honeywell Dual Tec Grade 3 PIR Motion Detector

This motion detector with anti-masking is indicated for commercial uses where a Grade 3 security system is necessary. It is a very reliable device that offers features to prevent false alarms.

Its installation is very simple since it is plug-in, and it also incorporates plug-in terminals, to make it faster and easier. Fixing the sensor to the wall is done simply with a screw.

Active infrared anti-masking technology, to detect all types of objects in case of accidental or intentional masking, in which case a trouble signal is sent.

This detector provides optimal performance thanks to the combination of x-band microwave technology with mirror optics of uniform sensitivity.

It has several detection zones (from zero angle to a long range of up to 36 meters).

-
+

Technical Specifications of the Honeywell Dual Tec Grade 3 PIR Motion Detector

Technical characteristics:

Plug-in electronics
Integrated end-of-line (EOL) resistors
Walk test activation
mirror optics
Safety grade 3 certificate
Active infrared anti-masking technology
Wide detection coverage
Professional design
Proprietary PIR signal processing solution
Patented zero angle solution
Patented self-diagnosis solution
Patented inertial sensor
Patented installation solution



SPECIFICATIONS:
Detection type PIR (mirror) + microwave
Coverage 16 x 22m
RFL Alarm and tamper: 1K, 2K2, 4K7 and 5K6; default = 1K Anti-masking*: 2K2, 3K; default = 3K
Detection zones Long range 36, intermediate range 10, short range 12 and zero angle 2
walk test 30s
Frequency Band-X: 10.525 GHz
RF Immunity 15 V/m, 80 MHz – 2.7 GHz
Mounting height 2.3 m (optimal)
Power requirements 9 – 15VDC
Consumption at temp. atmosphere 9 mA typical, 14 mA max.
alarm relay Form A/30 mA at 25 VDC, max. 22 Ohm/Duration: 3 s
Anti-masking relay*/fault Form B/30 mA at 25 VDC, max. 22 Ohm
Tamper Form A/30 mA at 25 VDC - Opening and wall
Operating temperature From -10ºC to +55ºC
Temperature compensation Advanced bidirectional
RH From 5% to 95% without condensation
PIR white light immunity 10,000 lux (typical)
Dimensions 116 x 70 x 43 mm (H x W x D)
Weight 135g
Certifications (DT8016AF4) EN50131-2-4:2008 Grade 3 Class II**
Certifications (DT8016MF4) EN50131-2-4:2008 Grade 2 Class II
More Information
EAN 886618176678
Hight 0.120
Length 0.060
Width 0.050
SECURITY - SYSTEM Dual Tec
SERIE PIR
Color White
Automation PIR Presence Sensor
Product Brand Honeywell
