Splitter DTT-SAT EasyF 8D 14dB Televes

Name: Splitter DTT-SAT EasyF 8D 14dB Televes
Brand: Televes
SKU: TEL5489
Price: 17.32 EUR
Availability: InStock

SKU

TEL5489

Brands: Televes

€17.32 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

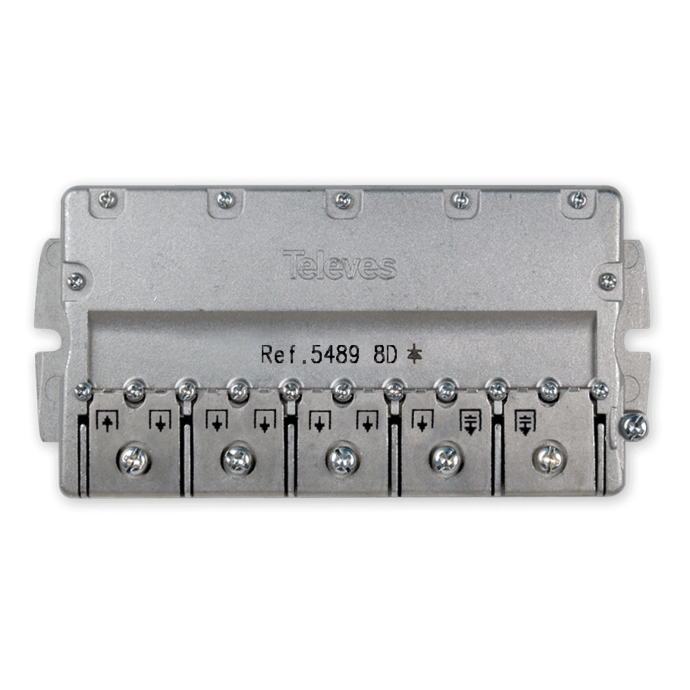

DTT-SAT EasyF 8W Splitter 14dB Televes 5489

8-way splitter for DTT and Satellite signals (10-2400MHz) with 14~16 dB attenuation. It includes a current passage to supply the LNB or other equipment in the installation.

Compact and efficient design with easy connection Flange or "EasyF" type. These connections are made by inserting the bare coaxial cable, without connectors, and they are securely fastened by tightening a screw.

This divider is for interior installation, although it can be installed outdoors always inside a 4163 box of Televes.

Details

8-way DTT-SAT 14dB distributor with EasyF connection.

Main characteristics of the Televes 5489 splitter:

EasyF connection system: easy to install, savings on mounting
Made of Zamak, high shielding
Outstanding reliability: automated manufacturing using new generation micro-components
Improves through losses
Outstanding electrical behaviour: impulsive noise reduction
Grounding screw provided
DC pass from the outputs to the input

What technical specifications does the TDT-SAT Televes 5489 splitter have?

Frequency range		MHz	5-2400
			10-862	950-2400
Number of outputs			8
Through loss	S1/S2	dB	14	14
	S3/S4		16	16
	S5/S6		14	14
	S7/S8		15	14
Tap loss			>28
DC Pass (max.)		mA	300 (in.↔out.)

More Information

More Information
EAN	8424450118993
Hight	0.129
Length	0.097
Width	0.068
DTT System	DTT & SAT Distribution
MANUFACTURER SERIES DTT	Brida Connector
Color	Silver
TV-SAT Distribution Equipment	Distributor
Entorno	Interior
TV-SAT Distribution Connection	Flange
Outputs	8
Input signal	DAB, FI, FM, UHF, VHF
Insertion Loss (dB)	14
Current bypass	Yes
Product Brand	Televes
