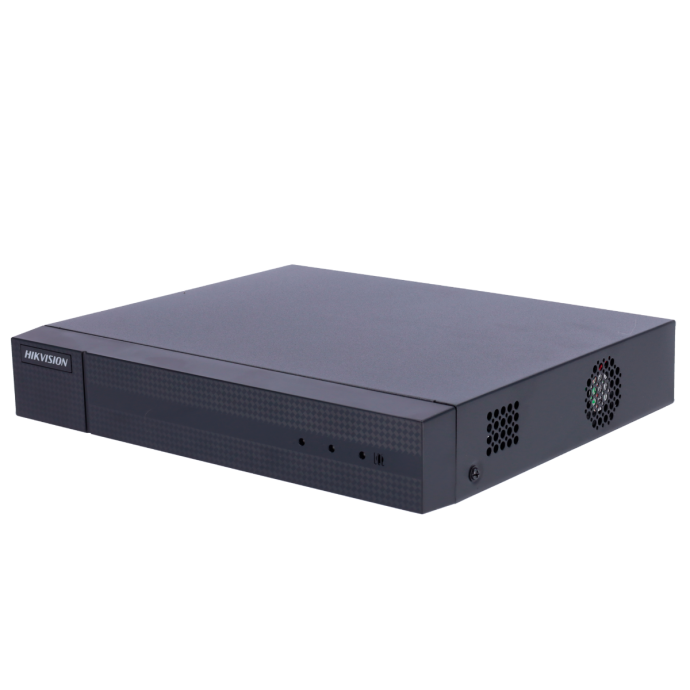

main product photo

Hybrid DVR 16 Channels 2Mpx 2 IP Channels 5Mpx Det Hum/Veh by Hikvision

SKU
HWD-5116MH-G4
Brands: Hikvision
€127.05 Tax included
11% Discount for professionals
Hikvision
Availability: In stock
24/48 Hours
Be the first to review this product

DVR recorder 5 IN 1 16 Channels 2MP and 2 IP Channels 5Mpx Hikvision

This recorder for security systems has 16 BNC channels, which means that you can connect up to 16 devices. It has a hybrid configuration (16 channels from BNC and 2 IP channels).

Its audio is bidirectional by RCA. 1080P resolution.

You have several recording configurations: manual, scheduled and motion detection. In addition, a 3.5" SATA HDD hard drive of up to 10TB can be installed (not included). It also incorporates 2 USB ports and a 10/100 RJ45 port as communication ports.

You can access it remotely through the web browser or through the application. This recorder incorporates motion detection 2.0 on all analog channels. He is able to classify between humans and vehicles.

Package content:

Recorder 5 in 1 Hikvision
Mouse
Power cord
CD with manual and software

-
+

Technical Specifications of the DVR Recorder 5 in 1 16 Channels 2MP and 2 IP Channels 5Mpx Hikvision



Brand Hikvision
Range HiWatch Series
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 16 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration 16 channels BNC and 8 IP channels (up to 6Mpx)
Video outputs 1 HDMI 4K, 1 VGA
Audio 16ch on Coaxial cable (HDTVI), 1 input / 1 output RCA
Bidirectional audio Using Audio Inputs and RCA Output
Video / audio compression H.265 Pro+/H.265Pro/H.265/H.264+/H.264 /G.711u
Display resolution 4K (3840x2160) 30Hz, 2K (2560x1440) 60Hz, 1920x1080 60Hz
Total bandwidth 32 Kbps at 10 Mbps
Input Resolution 4Mpx / 3Mpx / 1080p / 720p / WD1 / 4CIF / VGA / CIF (HDTVI)
Main Stream coding When 1080p Lite mode is not activated: 4 MP lite/1080p@15 fps; 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode is active: 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Extra Stream coding WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
Simultaneous multifunction Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording method Manual, programmed, motion detection
Motion Detection 2.0 Advanced motion detection of humans and vehicles on the scene
Backup USB (Memory, HDD, CD-RW, DVR-RW) / Network / Cloud (Dropbox, Google Drive, OneDrive)
Internal memory 1 HDD SATA 3.5" of up to 10TB (not included)
Communication 2 x USB 2.0 (Mouse and backup) / RJ45 10/100 (Ethernet)
Remote access Web browser, HikConnect Smartphone App and PC IVMS Software 4200
Power DC 12 V / 2.17 A, < 20W
Dimensions / Weight 45 (H) x 260 (W) x 222 (D) mm / 1.2 Kg
More Information
More Information
EAN 6931847170974
Hight 0.430
Length 0.110
Width 0.320
System Hibrid 5 on 1
SERIE 5Mpx
Included Mouse, Power supply
Event notifier No
No. CCTV Recorder Inputs 16 analogic or TVI
Audio in ports 1
Product Brand Hikvision
