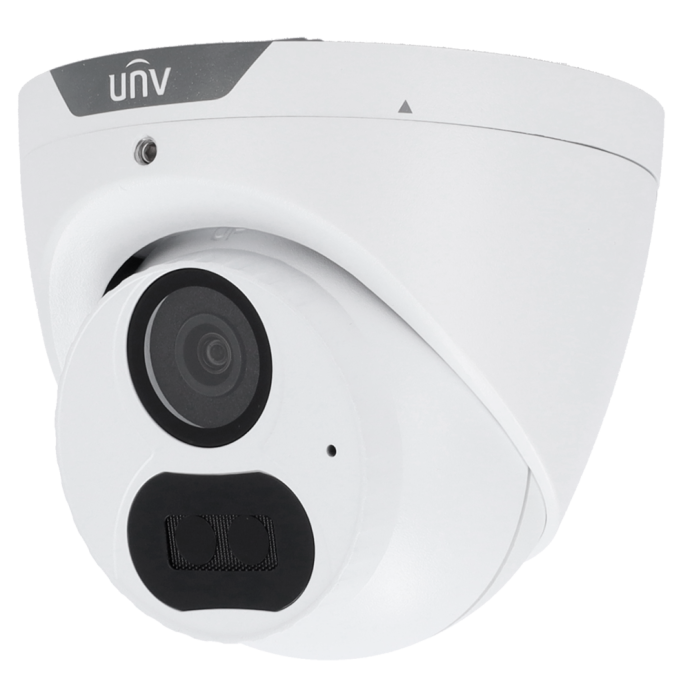

Hybrid Turret Camera 5Mpx Fixed 2.8mm IR 40m Lighthunter Microphone from Uniview

SKU

UV-UAC-T125-AF28LM

Brands: Uniview

Availability: On request

Delivery: 1 to 7 days

Uniview 5Mpx 4-in-1 Turret Camera with 2.8mm IR Fixed Optics 40m LightHunter LightHunter

This Uniview security camera is a turret type and has a number of advanced features that make it ideal for effective surveillance. It has a 5Mpx resolutionand afixed 2.8mm lens cwith a 3-axis viewing angle: 109º horizontal, 60º vertical and 126.7º background. They are typically used in businesses, offices and homes.

The camera is hybrid, compatible with various video formats (TVI, AHD, CVI, CVBS), making it very versatile for integration with other security systems.

With its LightHunter technology, the images obtained will have vivid colors, appropriate brightness and will be very clear in very low light, since it has a high sensitivity sensor. In addition, its IR sensor has a range of up to 40 meters.

It has a integrated microphone, with which you can listen and record audio along with the video, through coaxial cables.

It is waterproof (IP67), ideal for installation in outdoor environments, as it is resistant to dust and water.

Details

Technical Specifications of the Uniview 4 in 1 Turret Camera 5Mpx and Fixed Optics 2.8mm IR 40m LightHunter LightHunter from Uniview

Range	Uniview
Image sensor	1/2.7” Progressive Scan CMOS
Maximum resolution	5 MPx (2880x1620)
Resolution	TVI: 5MPx (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps) CVI: 5MPx (25 fps), 4MPx (25~30 fps), 1080p (25~30 fps) AHD: 5MPx (20 fps), 4MPx (25~30 fps), 1080p (25~30 fps) CVBS: PAL/NTSC
Lens	2.8 mm
Viewing Angle (FOV)	109.1° (H), 60.9° (V), 126.7° (D)
Minimum illumination	0.005 Lux @(F1.6, AGC ON) 0 lux with IR
Infrared lighting	0 Lux / Smart IR range 40 m
Day / Night	Auto (default), Day, Night
Invert image (Flip)	Supports horizontal rotation of 180º and vertical rotation of 180º
Image improvements	BLC, HLC, DWDR, DAY/NIGHT MODE, 2D-DNR, Smart IR
Video output	BNC, supports HDTVI, HDCVI, AHD and CVBS
Audio	Integrated microphone
Interface	5.5 mm
Power	DC 12V / 3.4W
Surge protection	4 KV
Temp. operation	-30º C ~ 60º C
Degree of protection	Weatherproof IP67
Material	Metal and plastic
Dimensions	111mm (Φ) * 98mm (H)
Weight	334 g
