ICT Secondary Register 55x100x15 cm

SKU
ICT5510015
Brands: Biacom
€117.98 Tax included
Availability: On request
1 to 7 days

Secondary Register 550x1000x150 mm BIACOM ICT5510015

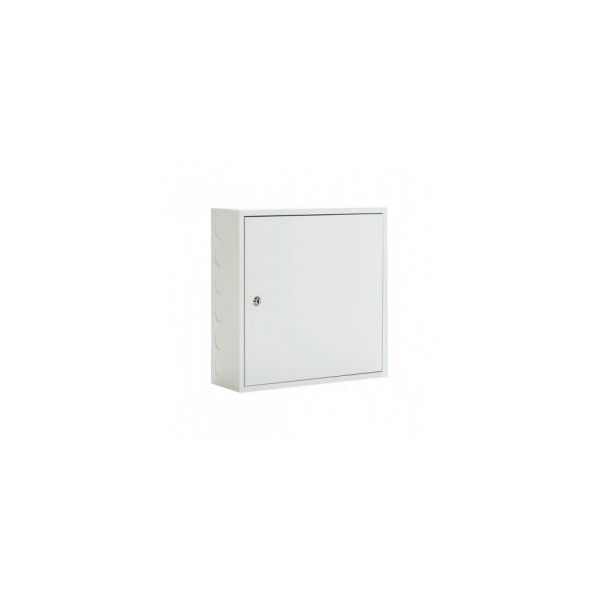

ICT cabinet with dimensions 55 x 100 x 15 cm, made of 1mm thick cold rolled steel, in white. Door without hinges, which allows changing the position to open to the right or left; and incorporates a lock with keys.

The register has pre-cutouts on all four sides for the wiring to pass: 4 pre-cut holes of ∅ 51mm on the ceiling and base, 12 pre-cut holes of ∅ 26mm and 6 pre-cut holes of ∅ 51mm on the right side and 6 pre-cut holes of ∅ 51mm on the left side.

Rear with wooden panel to facilitate the placement of distribution equipment.



-
+

Secondary ICT Register 55 x 100 x 15 cm with Wooden Background

What technical specifications does the BIACOM ICT5510015 Secondary Register have?

  • Dimensions: 550x1000x150 mm
  • Pre-cutouts:
    • Roof and base: 4 pre-cut holes of 51mm diameter
    • Right side: 12 pre-cut holes with a diameter of 26mm and 6 pre-cut holes with a diameter of 51mm
    • Left side: 6 pre-cut holes 51mm diameter
  • Normative:
    • UNE-EN-60950-1: Protection degrees provided by the IP-33 enclosure.
    • UNE-EN: 50102: IK-08 Impact Protection Degrees.
    • 93/68 / CEE DIRECTIVE OF CE MARKING.
    • 73/23 / CEE LOW VOLTAGE DIRECTIVE
More Information
Hight 0.180
Length 1.000
Width 0.560
System DTT Register
Serie Metálico
Color White
Product Brand Biacom
