ICT Strip 10 Ports Break-Test P/Support

SKU
GTL39R10
Brands: GTlan
€3.04 Tax included
Availability: On request
1 to 7 days

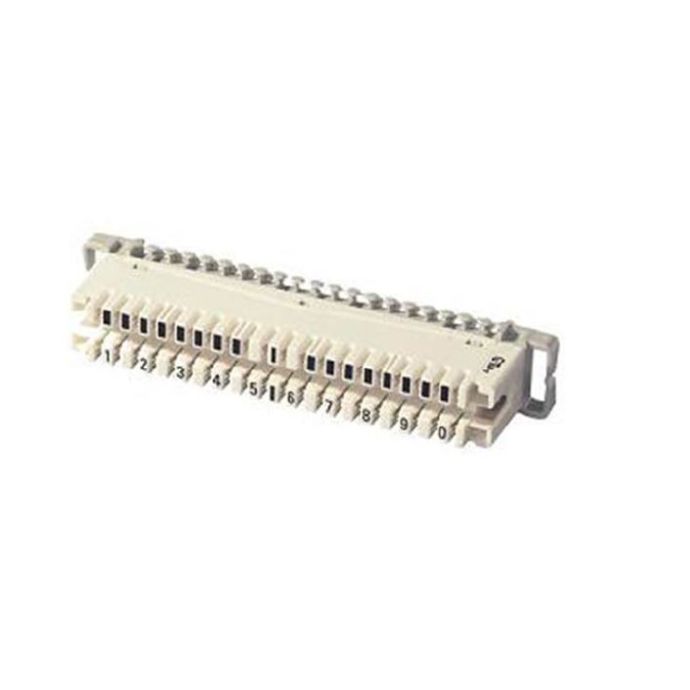

GTLAN 39R10 10 Port ICT Power Strip

Telephone pair connection strip with 10 ports. This strip is used for terminating and patching cables in boxes, cross connection cabinets, etc.

Made of ABS plastic with fire retardant material. Valid for cables with a conductor diameter between 0.40mm and 0.65mm. Cut/test verification.

Its terminals are made of bronze with a silver bath with system 110. Fixing mode by support.

-
+

Technical Specifications of the GTLAN 39R10 10-Port ICT Power Strip



Specifications:
  39R10
Dimensions : 123 x 20 x 40 mm
Nº pairs: 10
Mounting On ICT type support
Material: Fire retardant ABS or PBT
Terminal finish: Bronze with silver bath
Color: White (underside grey)
Cable outer diameter: less than 1,44 mm
Cable conductor diameter: 0,40 mm ~ 0,65 mm
Insulation resistance: More than 1,000 mΩ
Termination resistor: Less than 3mΩ
overall resistance: less than 10 mΩ
Number of connection operations: 200
Packaging: 10 units
More Information
EAN 8435481005824
Hight 0.100
Length 0.020
Width 0.020
Product Brand GTlan
RED - System Telephone
RED - SERIE Basic Telephony
