Ikall Audio Group for Comelit Simplebus 1 System

SKU
COM1622
Brands: Comelit
€85.28 Tax included
Comelit
Availability: On request
1 to 7 days

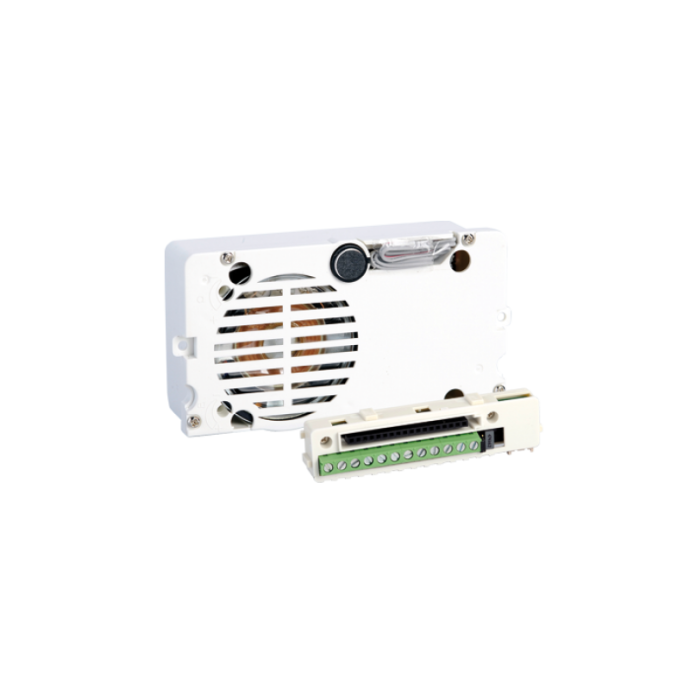

Audio Unit for Comelit Simplebus 1 System

This audio unit works with the simplebus 1 system and is compatible with Ikall, Ikall metal, Switch, Vandalcom and Roma series entrance panels.

An audio system makes it possible to manage communication in an automatic entryphone, regulates the audio in both directions, amplifies it, contains the button for card holder lighting or activates the door opener or the electronic call.

The loudspeaker volume is regulated from the front. Includes connection strip. Calls to users are programmed with the included 8-position switch.

Dimensions: 102x55x38mm.



Technical Specifications of the Audio Unit for the Comelit Simplebus 1 System



GENERAL DATA
Type Audio and video unit
Height (mm) 102
Width (mm) 55
Depth (mm) 43
Product color White
Product weight (g) 200
Type of finishing materials ABS
COMPATIBLE SYSTEMS
Audio/video Simplebus 2 with power supply art. 4888C Yes
Audio Simplebus 1 Yes
AUDIO FEATURES
Technologies implemented Echo canceling
ELECTRICAL CHARACTERISTICS
Type of power supply External power supply
Supply voltage 33VDC



HARDWARE FEATURES
Clamps L L V+V- RTE DO PR GND SE COM NC NO
Removable terminals Yes
Number of inputs (n°) 2
Number of outputs (n°) 2
Type of outputs Relay (C-NO-NC, 10A@12÷24 VAC/VDC), SE: unlock pulse of 4A, holding current of 200mA for 12VAC / DC locks (maximum impedance 18 Ohm)
SETTINGS
Loudspeaker volume Yes
PROGRAMMING MODE
Manual programming (via Dip Switch) Yes

ENVIRONMENTAL AND COMPLIANCE FEATURES
Operating temperature (°C) -25 ÷ 55
Operating humidity (RH max) (%) 25 ÷ 95
Environmental class IV
CE certifications RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
More Information
EAN8023903208917
Hight0.000
Length0.000
Width0.000
ACCESOS - SISTEMASimplebus (2 threads)
ACCESOS - SERIEIKALL
ColorWhite
Product BrandComelit
