Ikusi 2 Output F Connector 20dB Splitter

SKU
IKU2058
Brands: Ikusi
€5.09 Tax included
Ikusi
Availability: In stock
24/48 Hours

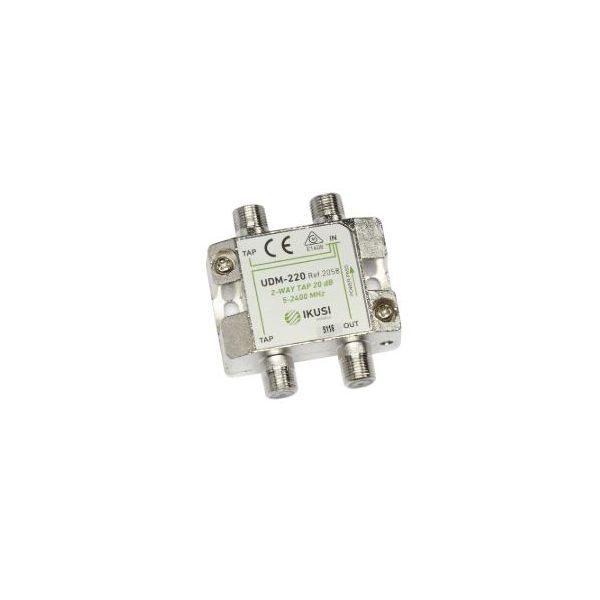

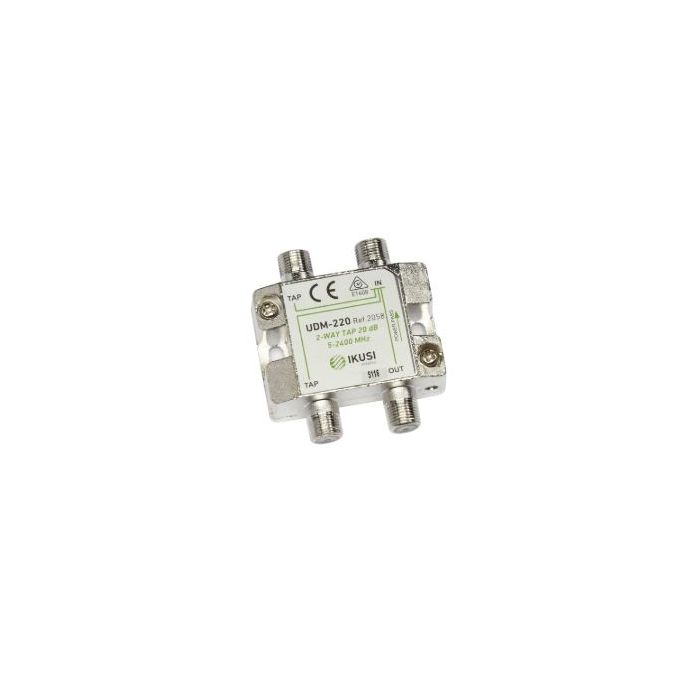

Ikusi 2-output 20dB shunt with F-connector

This shunt is useful for both terrestrial and satellite signals, since it works with a frequency range of 5-2400MHz. It has one input and one pass-through output, and two distribution outputs with an attenuation of 20 dB.

The Ikusi shunt has a good performance at high frequencies as it provides a low attenuation. Ideal for installation in intermediate floors.

It can be installed on the wall with screws, it is a high quality shunt because it is made of very resistant  materials.

Technical Specifications of the 2-Output 20dB Splitter with F Connector from Ikusi

REF

UDM-220



Output

2058



Frecuency Range

MHz



Bypass attenuation (± 0,7 dB)

dB

20



5-862 MHz



≤ 1,1

Pass Atenuation

950-2150 MHz

dB

≤ 2,2



2150-2400 MHz



≤ 3,3



5-300 MHz



≥ 31

Directional decoupling

301-862 MHz

dB

≥ 29



950-2400 MHz



≥ 26



5-300 MHz



≥ 46

Output decoupling

301-862 MHz

dB

≥ 42



950-2400 MHz



≥ 39

More Information
EAN8435136420583
Hight0.010
Length0.040
Width0.040
DTT SystemDTT & SAT Distribution
SERIES DTTF-connector
ColorSilver
TV-SAT Distribution EquipmentDiverter
EntornoInterior
TV-SAT Distribution ConnectionF
Outputs2
Input signalDAB, FI, FM, UHF, VHF
Insertion Loss (dB)20
Current bypassYes
Product BrandIkusi
