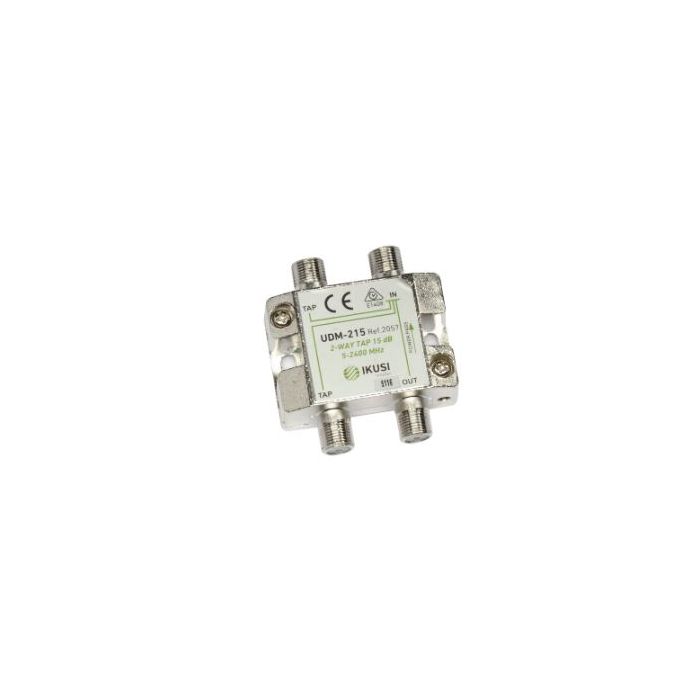

main product photo

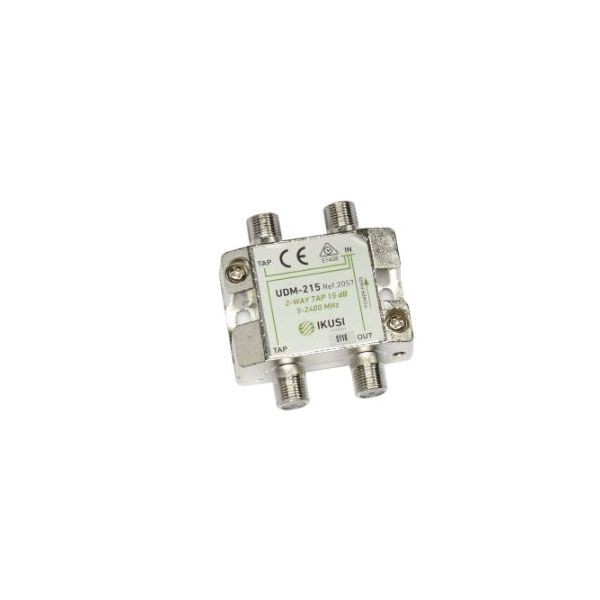

Ikusi shunt 2 Outputs F Connector 15dB

SKU
IKU2057
Brands: Ikusi
€5.09 Tax included
% Discount for professionals
Ikusi
Availability: In stock
24/48 Hours
Be the first to review this product

Ikusi 2-Output 15 dB Shunt with F Connector

This shunt is useful for both terrestrial and satellite signals, since it works with a frequency range of 5-2400MHz. It has one pass-through input and one pass-through output, and two distribution outputs with 15 dB attenuation.

The Ikusi shunt has a good performance at high frequencies as it provides a low attenuation. Ideal for installation in intermediate floors.

It can be installed on the wall with screws, it is a high quality shunt as it is made of very resistant materials.

-
+

Technical Specifications of the Ikusi 2 Output 15dB Shunt with F Connector

REF.

UDM-215



Output

2057



Frequency range

MHz





 (± 0,7 dB)

dB

15





5-862 MHz



≤ 1,6



Pass attenuation

950-2150 MHz

dB

≤ 2,5





2150-2400 MHz



≤ 3,5





5-300 MHz



≥ 29



Directional decoupling

301-862 MHz

dB

≥ 27





950-2400 MHz



≥ 22





5-300 MHz



≥ 39



Output decoupling

301-862 MHz

dB

≥ 37





950-2400 MHz



≥ 37














More Information
More Information
EAN8435136420569
Hight0.010
Length0.040
Width0.040
DTT SystemDTT & SAT Distribution
SERIES DTTF-connector
ColorSilver
TV-SAT Distribution EquipmentDiverter
EntornoInterior
TV-SAT Distribution ConnectionF
Outputs2
Input signalDAB, FI, FM, UHF, VHF
Insertion Loss (dB)15
Current bypassYes
Product BrandIkusi
