Indoor 5G filter rejection of 30dB from Johansson

SKU

JOH6023C48

Brands: Johansson

Availability: In stock

Delivery: 24/48 Hours

€10.89 Tax included

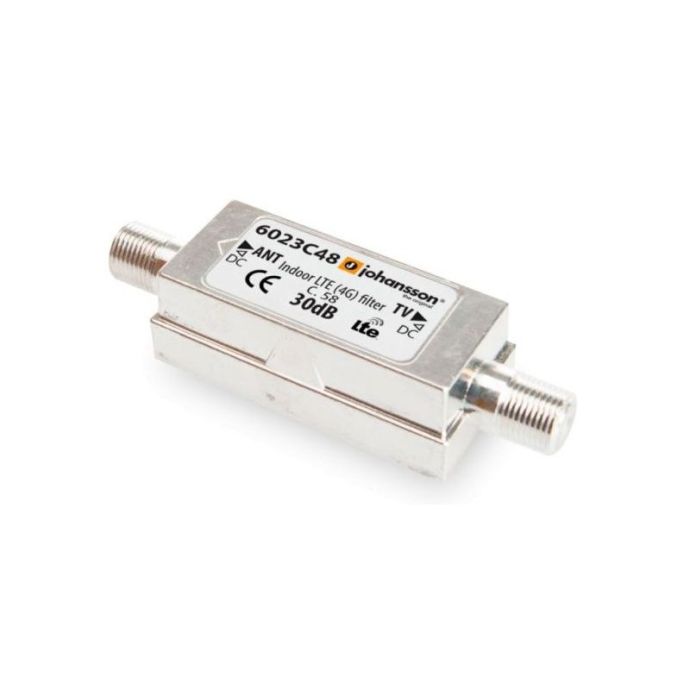

Internal LTE 5G filter Johansson 6023C48

LTE2 indoor housing filter with cut in channel 48 and rejection of 30dB. Supports DC current passage for prefeeding. Let the signals through the frequency range 5-694 MHz.

This low pass filter is the ideal solution for single-family homes that suffer from interference in their DTT signal due to the 2nd Digital Dividend. It is recommended to install between the amplifier and the nearest distributor / shunt, always protected from the weather.

Details

Economical 5G LTE filter with 30dB rejection and DC current passage.

What technical specifications does the Johansson 6023C48 5G LTE filter have?

Reference	6023C48
Frequency range	MHz	5-694
Cut off channel	-	48
Insertion loss	dB	1
LTE (4G) rejection CH50 - 69	dB	30
GSM rejection	dB	25
DC power pass	mA	500
Connectors	-	2 x F female
Mounting	-	Indoor Use
Dimensions	mm	72 x 22 x 17

More Information

More Information
EAN	2060230480100
System	DTT
SERIE	F-connector
Color	Silver
TV-SAT Distribution Equipment	Filter
Entorno	Interior
TV-SAT Distribution Connection	F
Cut channel	48
Input signal	UHF
Insertion Loss (dB)	1
Product Brand	Johansson
