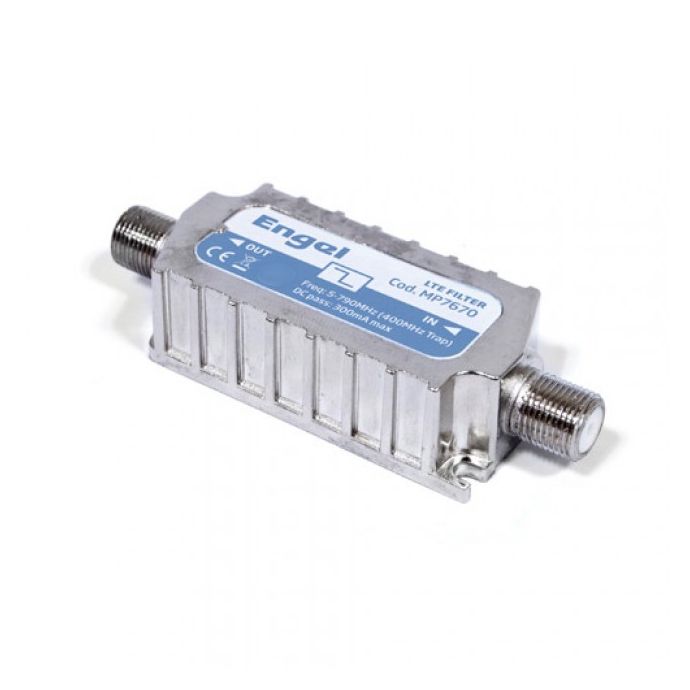

Indoor 5G LTE Filter 50dB DC Pass F Female - F Female Engel

SKU
ENGMP7670G5
Brands: Engel Axil
Availability: Out of stock
Consult

Indoor Anti 5G Filter 50dB with DC Pass Engel MP7670G5

LTE 5G filter to adapt our DTT capture system to the 2nd Digital Dividend, in a single-family home. This very high rejection filter (50dB) will eliminate all interference produced by the 5G and 4G mobile bands.

Filter for indoor installation, with F Female to F Female connections. It admits DC current pass (max. 300mA) to be able to place it in the path between the mast amplifier and the power supply.

With the arrival of 5G, the 700 MHz DTT band was released for this new connection. This low pass filter rejects frequencies between 694 and 862 MHz, which correspond to UHF channels 49 to 69.



5G PROTECT filter (5-694 MHz) with high rejection 50dB and DC pass, with F Female to F Female connections

What technical specifications does the Engel MP7670G5 5G LTE Filter have?

  • 5G PROTECT filter
  • Indoor installation
  • High rejection (50dB)
  • Frequency Range: 5-694 MHz
  • UHF channels: 21 to 48
  • Pass-through current (max. 300mA)
  • Connections "F" Female - "F" Female
More Information
EAN 8434127000148
Hight 0.130
Length 0.010
Width 0.060
DTT System Filtros LTE
MANUFACTURER SERIES DTT F-connector
Color Blue
TV-SAT Distribution Equipment Filter
Entorno Interior
TV-SAT Distribution Connection F
Outputs 1
Cut channel 48
Input signal UHF
Current bypass Yes
Product Brand Engel Axil
