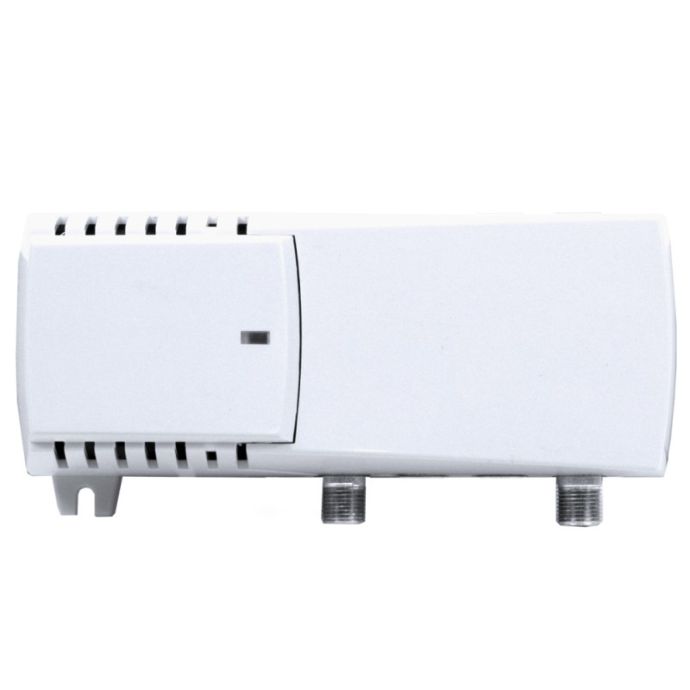

Indoor Amplifier RF + FI, 18.25dB 1 Terra Output

Name: Indoor Amplifier RF + FI, 18.25dB 1 Terra Output
Brand: Terra
SKU: TEHSA001
Price: 78.47 EUR
Availability: InStock

SKU

TEHSA001

Brands: Terra

€78.47 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

Indoor Amplifier RF + FI, 18.25dB 1 Output TE-HSA001

Terra amplifier for the interior of the house RF+ FI. Ideal in single-family homes that need extra amplification in SAT and terrestrial channels. It consists of 1 input and 1 output.

Gain of 18/25 dB adjustable for each band and 115 dBµv output. Allows DiSEqC and DC signal to pass through.

Its plastic case contains a die-cast casing inside.

Details

Technical Characteristics of the Indoor Amplifier RF + FI, 18.25dB 1 Output TE-HSA001

	Technical specifications
	T Y P E		HSA001	HSA001R3	HSA001R6
Ordering number			01786	01787	01788
Forward path
Frequency range		SAT IF	950- 2400 MHz
		Terr. TV	47-862 MHz		87-862 MHz
Gain		SAT IF	18-25 dB (pre-correction)
		Terr. TV	14-18 dB (pre-correction)
Gain adjustment		SAT IF	10 dB
		Terr. TV	15 dB
Input and output return loss		SAT IF	³ 10 up to 1750 MHz, 1750-2400 MHz linear decrease from 10 dB up to 7 dB
		Terr. TV	³ 10 dB
Maximal output level IMD3=35 dB (EN50083-) Maximal output level IMD3=60 dB (DIN45004B)		SAT IF Terr. TV	115 dBµV (2 egual carriers) 110 dBµV 400 mA max.
DC pass
Return path
Frequency range			-	5 - 30 MHz	5-65 MHz
Loss			-	-4 dB
Return loss			-	>14 dB
General
Mains power consumption			230 V~ 50 Hz 4 W
Temperature range			-20o ÷ +50o C
Dimensions			133x73x39 mm/0.36 kg

More Information

More Information
Hight	0.080
Length	0.080
Width	0.040
DTT System	Amplificador TDT y SAT
MANUFACTURER SERIES DTT	F-connector
Color	White
Type	Indoor home amplifier
Entorno	Interior
Input signal	FI, UHF, VHF
# Inputs	1
Outputs	1
Gain	18
Max. output level Ganancia (dB/uV)	115
LTE compatible	No
Product Brand	Terra
