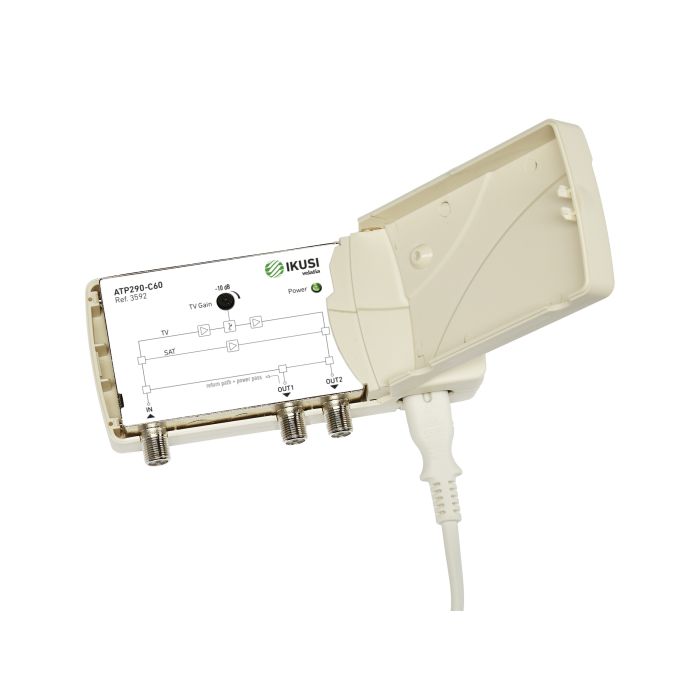

Indoor Amplifier UHF-SAT 2 Outputs LTE 5G Ikusi

SKU
IKU3593
Brands: Ikusi
€38.41 Tax included
Availability: In stock
24/48 Hours

Indoor Amplifier DTT-SAT 18dB with 2 outputs LTE 5G Ikusi 3593

Indoor home amplifier for terrestrial and satellite signal (UHF-SAT) with integrated 5G LTE filter, optimized for the 2nd Digital Dividend.

It offers a gain of 14dB (UHF) / 18dB (SAT) and a maximum output of 102dBμV (UHF) / 108dBμV (SAT). At the OUT1 output it admits return path (5-30 MHz) and DC power pass (500mA). Includes ±10 dB gain adjustment potentiometer for TV terrestrial.

This amplifier is ideal for expanding the TV network in single-family homes with satellite dishes, using it as a reinforcement if you already have an amplifier installed but need a little more power to reach all rooms.

-
+

Indoor Home Amplifier ATP-290-C48 for Terrestrial + Satellite signal, adapted to LTE 5G

What technical specifications does the Ikusi 3593 Indoor Amplifier have?

  • Model: ATP-290-C48
  • Reference: 3593
  • Frequency band:
    • Terrestrial: 47-694 MHz
    • Satellite: 950-2400 MHz
  • Inputs: 1
  • Outputs: 2
  • Gain:
    • Terrestrial: 14 dB
    • Satellite: 18 dB
  • Gain regulation: 10 dB
  • Output level:
    • Terrestrial: 102 dBμV IMD3 -60dB (DIN 45004B)
    • Satellite: 108 dBμV IMD3 -35dB (EN 50083-3)
  • Return video frequency: 5-30 MHz (OUT1)
  • Noise figure: <6 dB
  • Mains voltage: 100-240 Vac
  • Current pass: 500 mA (OUT1)
  • Consumption: <3 W
  • Dimensions: 135 x 70 x 30 mm
More Information
EAN 8435136435938
Hight 0.160
Length 0.050
Width 0.110
DTT System Amplificador TDT y SAT
MANUFACTURER SERIES DTT F-connector
Color White
Type Indoor home amplifier
Entorno Interior
# Inputs 1
Outputs 2
Gain 18
Max. output level Ganancia (dB/uV) 102
LTE compatible No
Product Brand Ikusi
