Indoor Amplifier UHF/VHF 2S+TV 20dB "F" LTE 5G

Name: Indoor Amplifier UHF/VHF 2S+TV 20dB "F" LTE 5G
Brand: Televes
SKU: TEL552220
Price: 34.82 EUR
Availability: InStock

SKU

TEL552220

Brands: Televes

€34.82 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

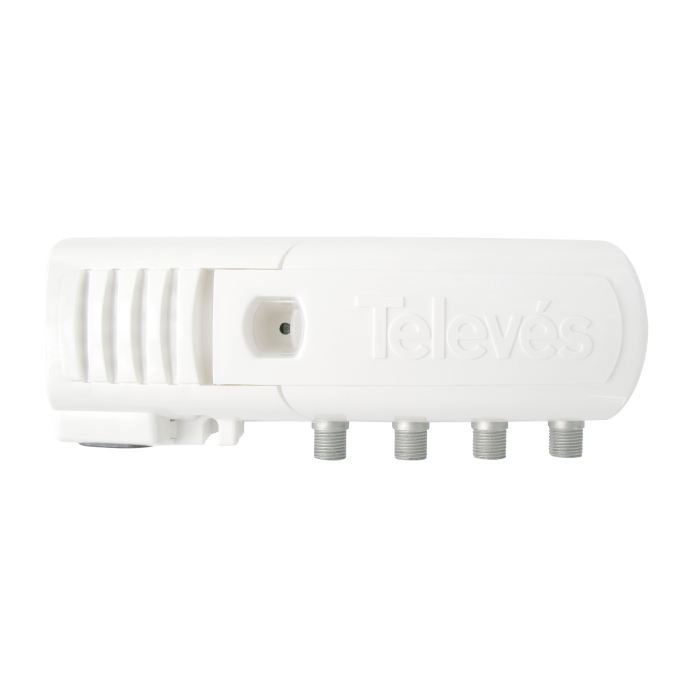

Indoor Amplifier UHF/VHF 2S+TV "F" 20dB Televes 552220

Indoor home amplifier for VHF/UHF with 3 "F" outputs (2 + 1TV) to expand the domestic TV network. Amplifier adapted to the 2nd Digital Dividend with integrated 5G LTE filter (694 MHz).

This amplifier has a gain of 20dB and supports a maximum output level of 110dBμV. The TV output has a lower gain (12dB) to be connected directly to the TV, without installing a outlet.

Discrete and compact design amplifier, with integrated low consumption power supply (40% less than other amplifiers).

Details

Indoor amplifier for UHF/VHF G. 20dB with 3 outputs (2+TV) with 5G LTE filter

What are the main characteristics of the Televes 552220 Indoor Amplifier?

Low-impact visual design and limited size
Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
Fully automated manufacturing subject to the most stringent quality controls
Manual gain control, protected by a folding cover
Can be wall-mounted using screws
“F” connectors

What technical specifications does the Televes 552220 Indoor Amplifier have?

Outputs			3 (2 + 1TV)
Frequency range		MHz	47...694
Gain		dB	20 (12 @TV)
Gain regulation margin		dB	0 ... 15
Output level	EN50083(1)	dBμV	117
	DIN45004B		110
Noise figure		dB	6
Mains tension/frequency		V~/Hz	193-253 / 50-60
AC power consumption		W/mA	2,3 / 23
Operating temperature range		ºC	-5 ... +45
Protection index		IP	20

More Information

More Information
EAN	8424450188866
Hight	0.146
Length	0.035
Width	0.053
DTT System	DTT Amplifier
MANUFACTURER SERIES DTT	F-connector
Color	White
Type	Indoor home amplifier
Entorno	Interior
# Inputs	1
Outputs	4
Gain	20
Max. output level Ganancia (dB/uV)	110
LTE compatible	No
Product Brand	Televes
