Indoor Amplifier UHF/VHF 2S+TV "CEI" 20dB LTE 5G

Name: Indoor Amplifier UHF/VHF 2S+TV "CEI" 20dB LTE 5G
Brand: Televes
SKU: TEL545720
Price: 45.75 EUR
Availability: InStock

SKU

TEL545720

Brands: Televes

€45.75 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

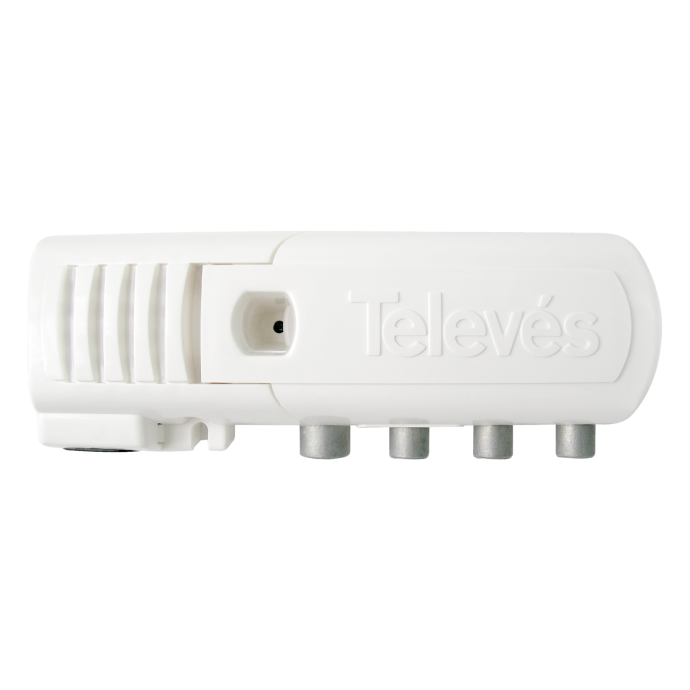

Indoor Amplifier UHF/VHF 2S+TV "CEI" 20dB LTE 5G Televes 545720

Indoor home amplifier for UHF/VHF with 3 outputs "CEI" (2 + 1TV) with switchable DC current pass (12Vdc / 100mA). Equipment adapted to the 2nd Digital Dividend with integrated 5G LTE filter (694 MHz).

This home amplifier offers 20dB of gain and supports an output level of 110dBμV. It includes a TV output with reduced gain (12dB) to connect directly to the television, without installing an outlet.

Discrete and compact design amplifier, with integrated low consumption power supply (40% less than other amplifiers).

Details

Indoor DTT amplifier with 3 outputs (2+TV) with 20dB gain, 5G LTE and DC current pass-through

What are the main characteristics of the Televes 545720 Indoor Amplifier?

Low-impact visual design and limited size
Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
Fully automated manufacturing subject to the most stringent quality controls
Manual gain control, protected by a folding cover
ON/OFF DC pass switch, for pre-amplifier or BOSS system powering
Can be wall-mounted using screws
“IEC” connectors

What technical specifications does the Televes 545720 Indoor Amplifier have?

Inputs			3(2+1TV) (CEI)
Frequency range		MHz	47...694
Gain	G	dB	20 (12 @ TV)
Gain adjustment range	marg	dB	0 ...15
Max. output level	DIN 45004B Vout	dBμV	>110
Max. output level	IMD3 (2tones, -35dB) Vout	dBμV	>117
Noise level	N.F.	dB	6
Power supply/Max. current inputs	ON	Vdc/ mA	12 / 100
Power supply/Max. current inputs	OFF	Vdc/ mA	0
Mains voltage/frequency		V~/Hz	196...253/ 50...60
AC power consumption		W/mA	<3,6 / <34
Protection index		IP	20
Operating temperature range		ºC	-5 ... +45

More Information

More Information
EAN	8424450188873
Hight	0.146
Length	0.035
Width	0.053
DTT System	DTT Amplifier
MANUFACTURER SERIES DTT	CEI Connector
Color	White
Type	Indoor home amplifier
Entorno	Interior
# Inputs	1
Outputs	3
Gain	20
Max. output level Ganancia (dB/uV)	110
LTE compatible	No
Product Brand	Televes
