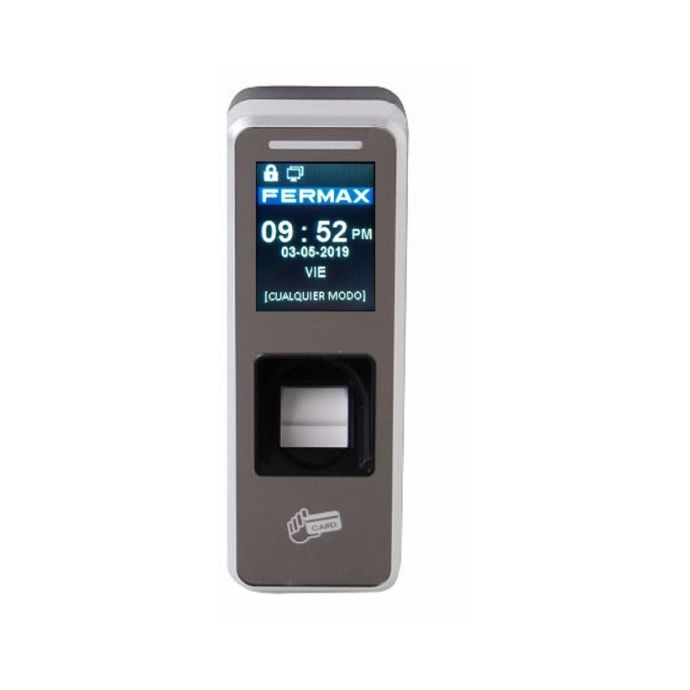

INKEY Mini IP Fingerprint and proximity reader

INKEY Mini surface fingerprint reader from Fermax with integrated proximity of MIFARE technology.

What main features does the Fermax INKEY MINI 5233 reader offer?

• INKEY-MINI fingerprint reader, narrow profile and compact design, surface mount.
• It allows working as a stand-alone reader or with the centralized IP AXES system in Wiegand mode, registering the tracks from the reader itself.
• Terminal with optical biometric technology.
• Recommended for indoor and outdoor.
• IP65 protection that provides great resistance against dust and liquids.
• It has integrated RFID reading proximity, for high frequency cards of 13.56 MHz, MIFARE.
• Manage each reader up to 5,000 tracks and 200,000 events.

What technical specifications does the Fermax INKEY MINI 5233 reader have?

TECHNICAL CHARACTERISTICS

• Power: 12Vdc / 300mA
• Operating temperature: [-20ºC, + 40ºC]
• Humidity: [10%, 80%] without condensation.
• Compatibility: MIFARE cards / keychains (13.56MHz)
• Capacity 5,000 footprints.
• Maximum 200,000 events.
• Up to 150 network readers
• Wiegand output proximity protocol.
• Sensor type: Optical Sensor.
• Frequency Range: 13.56MHz (RFID)
• 32 bit CPU 256MB RAM

MECHANICAL CHARACTERISTICS

• APPEARANCE
• IP65
• Surface fixing system.
• Hidden screws
• External TCP / IP and ETHERNET interface
• USB connection
• Display 1.8 "TFT.
• Multicolor LED.
• Multi-tone sound / Buzzer.
• DIMENSIONS (surface mount)
• 48 (H) x 138 (V) x 38 (P) mm.
