Lock releases comparision table

ALTERNATE

CONTINUOUS



N

A

AI

AD

N

A

AI

AD

FER2911

FER30691

FER28151



FER6780



FER28171



MULTIVOLTAGE

10 a 24 Vc/Va



FER67521



FER67531



FER67521



FER67531

N: Normal operation. When you hold down to open, you have to push the door. It does not have door unlocking.
A: Automatic operation, after pressing it can be pushed to open the door, with “pin”.
AI: Invisible automatic operation, after pressing it can be pushed to open the door, without “pin”.
AD: Automatic operation by "pin" and release lever. The unlocking lever allows the door to be left open permanently. It can be activated or deactivated.

MULTIVOLTAGE: Supports 10 to 24 volts in DC and AC.

All the openers in this table have an adjustable latch.

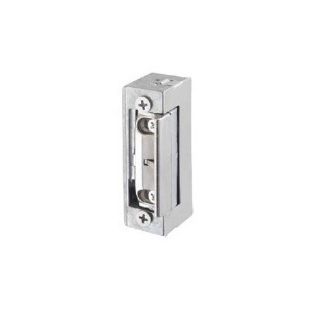

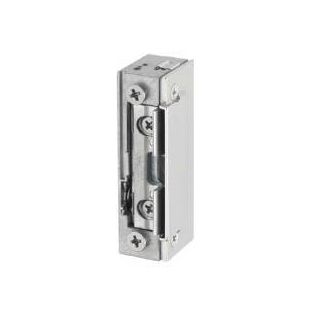

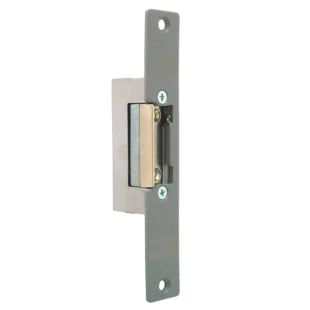

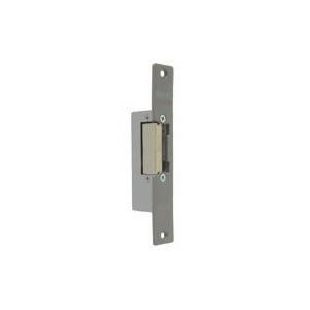

A lock release is composed of an electrical mechanism and a frame or cover depending on whether it is flush-mounted or surface-mounted.

Normal Operation - N

Allows the door to be opened during the time the lock release is powered.
• N Activation 12 Vac
• N-412 12 Vdc activation
• N-424 24 Vdc activation

Automatic Operation - A

Allows the door to be opened with a brief electrical power impulse. The lock release automatically locks when the door is closed again.
• A Activation 12 Vac
• A-412 12 Vdc activation
• A-424 24 Vdc Activation

Safety Operation - N-500

It allows the door to be opened during the time the lock release is no longer powered.
• N-512 Activation 12 Vdc
• N-524 24 Vdc activation

Additional functions

Release lever - D
The lock release includes a manual release lever, which inhibits its operation, allowing free access.
• ND Normal unlock activation. 12 Vac.
• AD Automatic unlock activation

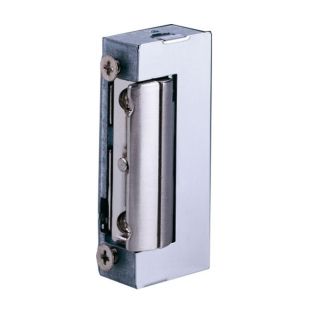

MAX series with adjustable latch
Allows an exact fit between the latch (tongue) and the latch of the lock (with a 4mm margin). To request a MAX version lock release, please contact us 952 230 671.

IF YOU NEED A LOCK RELEASE THAT WE DO NOT HAVE IN THE CATALOG, ASK US.
