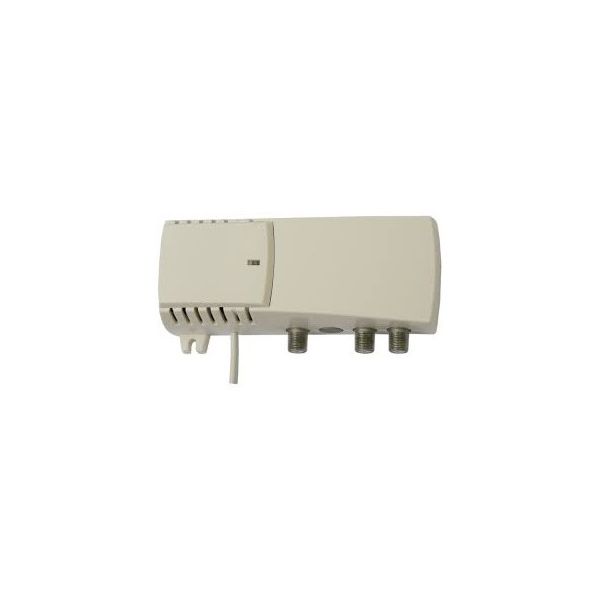

Internal Amplifier 2 Outputs Integrated Filter LTE 694MHz

Type

AS039

AS039R65

AS039L

AS039T

Frequency range

47-862 MHz

87-862 MHz

47-790 MHz

47-694 MHz

Outputs number

2

Gain

16 dB 47 MHz; 20 dB 862 MHz*

Gain adjustment

0 ¸ -12 dB

Maximal output level IMD3=60 dB (DIN45004B)

100 dBµV*

Noise figure

< 6 dB

< 6 dB (700 MHz)

< 6 dB (600 MHz)

Frequency range

-

5-65 MHz

-

Gain

-

-5 dB*

-

Return loss

-

> 12 dB*

-

Supply voltage limit values, power consumption

198-250 V~ 50/60 Hz 3 W

Operating temperature range

-20o ¸ +50o C

Dimensions/Weight (packed)

133x63x39 mm/0.36 kg
