Interruptor Simple Z-Wave Walli Switch Antracita de Fibaro

SKU
FIBFGWDSEU2218
Brands: Fibaro
€86.85 Tax included
Fibaro
Availability: In stock
24/48 Hours

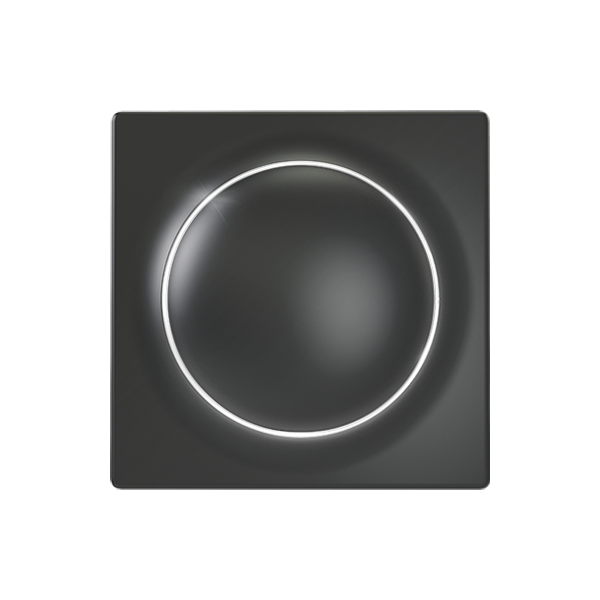

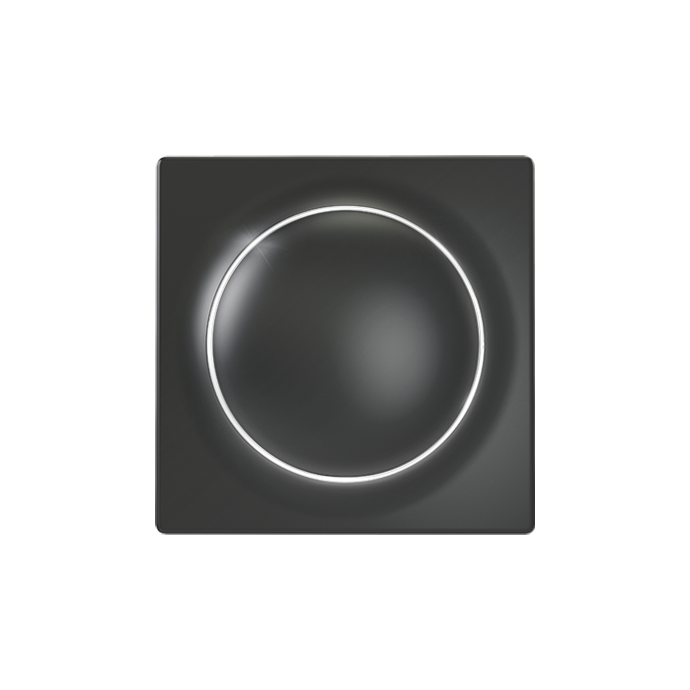

Fibaro Walli Switch ANTHRACITE FGWDSEU-221-8

Fibaro's Walli Switch series switch is an elegant and sophisticated configurable smart switch.

You can configure the button with up to 4 different solutions: 1 click, double click, triple click, keep pressed, so that it performs different options as you wish.

The connection is made through the Z-Wave protocol, it is an international standard for the interconnection of wireless home automation systems, which makes it compatible with the rest of the Fibaro devices.

Its LED ring adapts to you, being able to configure it with your favorite color. You can choose a base color for the switch, choose double backlighting, being able to use two colors of the ring (for ON and OFF or to know the status of the device). You can also know the energy consumption of your domestic equipment, according to a color scale.

Package content:

*Switching unit FGWDSEU-221-8

*Single cover plate FG-Wx-PP-0001

*Switch button with light guide FG-WDSEU221-AS-8100

*FIBARO FG-Wx-AS-4004 mounting frame

*Manual

Technical Specifications of the Fibaro Walli Switch ANTHRACITE FGWDSEU-221-8

Brand: Fibaro

Dimensions: 86x86x51mm

POWER AND INSTALLATION

Power supply: 110-230V 50/60Hz

Recommended external overcurrent protection: 10A type B

Recommended cable: cross-sectional area between 1.5-4.0mm2

For installation in flush-mounted boxes:

Ø = 60mm
Depth ≥ 40mm

Operating temperature: 0-35ºC

Environmental humidity: 10-95% Non-condensing.

DEVICE APPLICATIONS

Rated charging current:

*13A for one channel

*16A total

Number of controlled loads:

*1/2 (default 2)

Compatible Load Types:

*Incandescent

*Fluorescent tubes

*LEDs

*Electronic transformers

*Ferromagnetic transformers

COMMUNICATIONS

Radio Protocol: Z-Wave

Transmission power: EIRP max. 6dbm

Radio frequency:

*868.4 or 869.85 MHz EU

*869.0 MHz UK

Range:

*up to 50m outdoors

*up to 40m indoors (depending on terrain and building structure).

el edificio).

More Information
EAN5902701702403
Hight0.150
Length0.050
Width0.100
SECURITY - SYSTEMZ-Wave
SEGURIDAD - SERIEWalli
ColorBlack
AutomationButton / Switch
Product BrandFibaro
