IP and Wifi Video Door Phone Kit with Street Panel with Mifare Reader and Monitor

SKU
DS-KIS605-P
Brands: Hikvision
€234.79 Tax included
Free shipping
(Iberian Peninsula)
Hikvision
Availability: On request
1 to 7 days

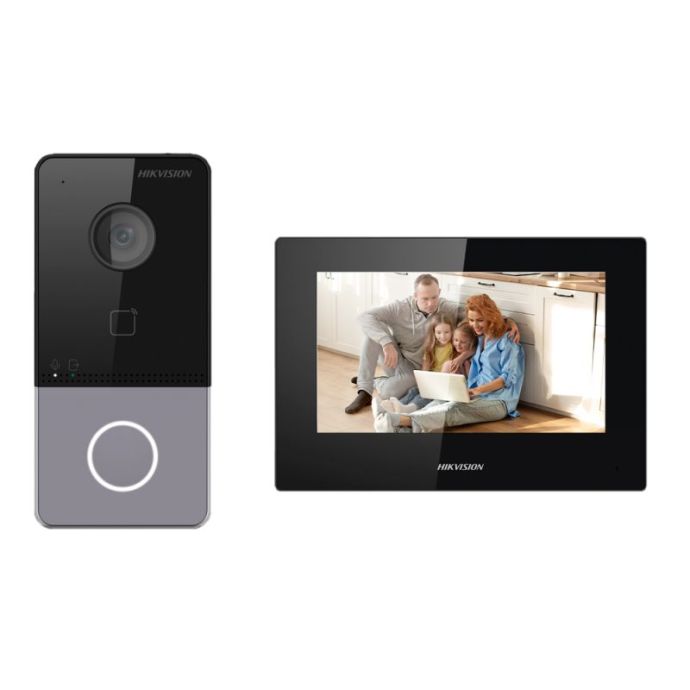

Hikvision Video Door Phone Kit with DS-KV6113-WPE1 Panel and 7” Color Monitor DS-KH6320-LE1

This kit consists of an exterior video door entry panel that you can install on the surface and a 7” color monitor.

The kit works both over IP and over WiFi, so it is very practical in situations where cabling installation is difficult or we want to do it through the existing data network. The panel can be installed outdoors and incorporates a MIFARE card reader.

This kit can be used in buildings with several entrances, where access must be given from a non-visible door, such as a hotel with several entrance doors. The guest would call the doorman, the call coming directly to the hotel reception, to open the door. Access could also be through a MIFARE key fob.

Package content:

*Video door entry panel to install on Hikvision surface
*Hikvision indoor monitor
*2 x power supply

Technical Specifications of the Hikvision Video Door Phone Kit with DS-KV6113-WPE1 Panel and 7” Color Monitor DS-KH6320-LE1



DS-KV6113-WPE1(C)

Brand Hikvision
Model DS-KV6113-WPE1(C)
Operating system Linux
Image sensor 1/3" 2 Mpx CMOS wide-angle IR
Image Functions BLC / WDR / DNR
Viewing angle H: 131º, V: 78º
Audio Bidirectional audio with microphone and speaker
Access control RFID card door opening (MF 13.56 MHz)
Up to 2.000 users and 10.000 cards
Keypad Mechanical call button
Outputs 1 x relay for lock, 1 x RS485
Inputs 4 x auxiliary inputs (output button, feedback, door sensor), 1 x tamper
Remote access Web browser
Software iVMS-4200
Hik-Connect mobile application
Network interface Ethernet 10/100 BaseT / SIP Protocol 2.0 / WiFi (only for app connection via P2P)
Power DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Degree of protection Suitable for exterior IP65
Material Plastic
Temp. operation -40º C ~ +55º C
Dimensions 138 (H) x 65 (W) x 27 (D) mm
Weight 265 g

DS-KH6320-LE1(B)

Brand Hikvision
Model DS-KH6320-LE1(B)
Operating system Linux
Screen type 7" color touch-screen TFT
Screen resolution 1024 x 600
Inputs 8 x configurable alarm inputs
Audio Two-way audio with integrated microphone and loudspeaker
Noise reduction and echo cancellation
Connection Ethernet 10/100 BaseT / RTSP / SIP protocol 2.0
Remote access Software iVMS-4200
Power DC 12 V / 500 mA máx. / IEEE802.3af PoE
Temp. operation -10º C ~ +50º C
Dimensions 140 (H) x 200 (W) x 23.6 (D) mm
Weight 325 g
Slave monitors It is not possible to use the Android DS-KH9310 and DS-KH9510 monitors as slaves
More Information
EAN6931847170493
Hight0.350
Length0.120
Width0.150
ACCESOS - SISTEMAIP
ACCESOS - SERIEKit
ColorBlack
Color Portero/VideoporteroColor
TypeComplete Kit
Product BrandHikvision
