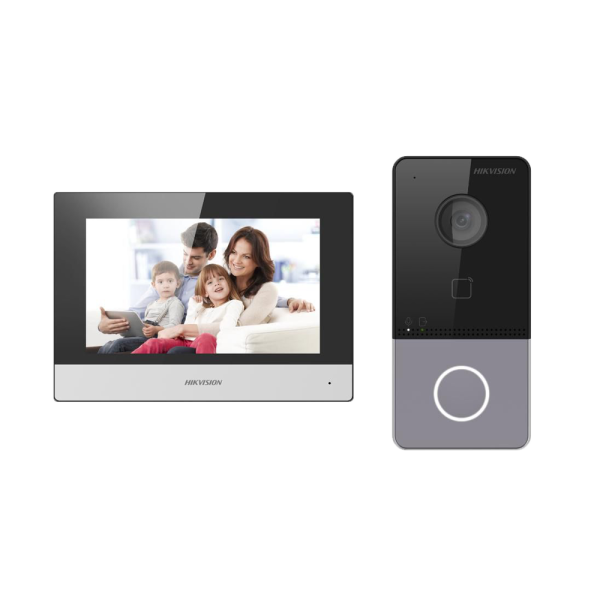

IP and WiFi Video Intercom Kit with 2Mpx Panel and MF Reader DS-KV6113-WPE1 and 7'' Monitor DS-KH6320-WTE1

SKU
DS-KIS603-P
Brands: Hikvision
€240.67 Tax included
Free shipping
(Iberian Peninsula)
% Discount for professionals
Hikvision
Availability: On request
1 to 7 days
Be the first to review this product

DS-KIS603-P Kit consisting of DS-KV6113-WPE1 Board and DS-KH6320-WTE1 Monitor from Hikvision

This kit consists of a board and an IP monitor for homes.

The DS-KV6113-WPE1 board supports WiFi and requires no wiring. Its HD camera is 2Mpx with IR supplement. Includes internal Mifare card reader, with access control. Noise suppression and echo cancellation. Its compact, elegant design is prepared for outdoors with IP65 protection rating.

The DS-KH6320-WTE1 WiFi monitor has a 7” touch screen with 1024x600 resolution. With a new V2.0 interface that is very easy to use. Allows 12V power or through standard POE. You can store messages and capture images on TF card. Allows you to view live videos from door stations and linked cameras. Remote unlocking through client software. It has a memory slot of up to 32Gb. With integrated microphone and speaker.

Box contents:

*Video intercom exterior panel to be installed on a Hikvision surface
*Hikvision indoor monitor
*microSD card
*2 x power supply

-
+

Technical Specifications of the DS-KIS603-P Kit composed of DS-KV6113-WPE1 Board and DS-KH6320-WTE1 Monitor from Hikvision

DS-KV6113-WPE1(C)
Brand Hikvision
Model DS-KV6113-WPE1(C)
Operating system Linux
Image sensor 1/3" 2 Mpx CMOS wide-angle IR
Image Functions BLC / WDR / DNR
Viewing angle H: 131º, V: 78º
Audio Bidirectional audio with microphone and speaker
Access control RFID card door opening (MF 13.56 MHz)
Up to 2.000 users and 10.000 cards
Keypad Mechanical call button
Outputs 1 x relay for lock, 1 x RS485
Inputs 4 x auxiliary inputs (output button, feedback, door sensor), 1 x tamper
Remote access Web browser
Software iVMS-4200
Hik-Connect mobile application
Network interface Ethernet 10/100 BaseT / SIP Protocol 2.0 / WiFi (only for app connection via P2P)
Power DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Degree of protection Suitable for exterior IP65
Material Plastic
Temp. operation -40º C ~ +55º C
Dimensions 138 (H) x 65 (W) x 27 (D) mm
Weight 265 g

DS-KH6320-WTE1
Brand Hikvision
Model DS-KH6320-WTE1
Operating system Linux
Screen type 7" color touch-screen TFT
Screen resolution 1024 x 600
Inputs 8 x configurable alarm inputs, 1 x RS485
Outputs 2 x relay outputs
Audio Two-way audio with integrated microphone and loudspeaker
Noise reduction and echo cancellation
Memory MicroSD card slot (up to 128 GB)
Connection Ethernet 10/100 BaseT / RTSP / SIP Protocol 2.0 / WiFi 802.11 b/g/n (only for connection to app via P2P)
Remote access Software iVMS-4200
Hik-Connect mobile app
Power DC 12 V / 1 A max. / IEEE802.3af PoE
Temp. operation -10º C ~ +55º C
Dimensions 140 (H) x 200 (W) x 15 (D) mm
Weight 355 g
Slave monitors It is not possible to use the Android DS-KH9310 and DS-KH9510 monitors as slaves
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
System IP
SERIE Kit
Color Silver
Color Portero/Videoportero Color
Type Complete Kit
Product Brand Hikvision
Reviews
Write Your Own Review
You're reviewing:IP and WiFi Video Intercom Kit with 2Mpx Panel and MF Reader DS-KV6113-WPE1 and 7'' Monitor DS-KH6320-WTE1
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Kit de Videoportero IP y WiFi con Placa 2Mpx y Lector MF DS-KV6113-WPE1 y Monitor 7'' DS-KH6320-WTE1 30.3 KB Download
