IR over coax Receiver (2nd port)

SKU
TEL7606
Brands: Televes
€42.19 Tax included
Televes
Availability: In stock
24/48 Hours

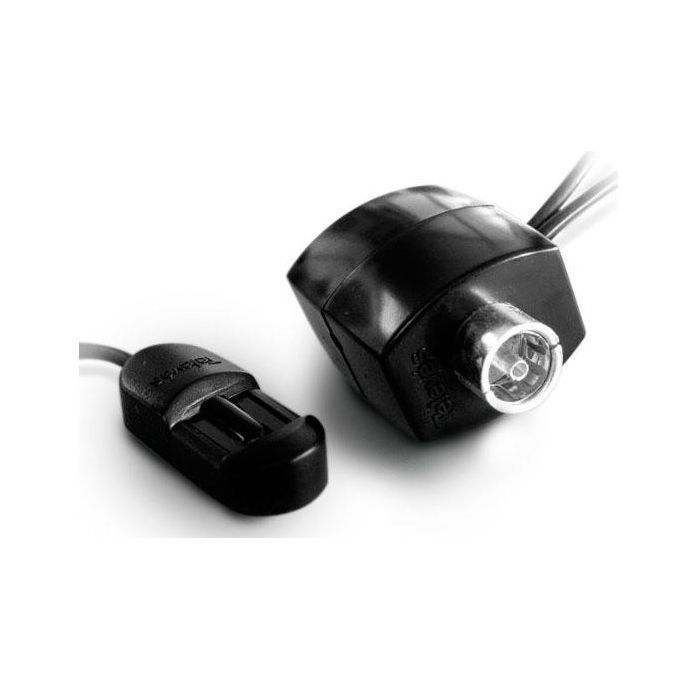

IR over coax Receiver (2nd port)

 The Televes second-socket IR-over-coax receiver allows the transmission of infrared signals from remote controls over the coaxial cable network , so that we can change any receiver, television, etc. from a different room . (Only for second socket ).

It is a universal system for remote control of equipment such as satellite receivers, DTT, DVD, and video VCR .

Technical characteristics   RX TX
GO
Output frequency KHz 36 (RC5) ---
RF
Min. entry level dBμV 50 ---
Modulation frequency MHz --- 14.7
Output level dBμV --- 100
Harmonic level dBc --- -45
Insertion losses dB 0.5 @ 5 – 862
MHz
General
Feeding Vdc 12
Max consumption mA 12
Coaxial output power supply mA 30 ---

Physical Data

Net weight: 400 g

Gross weight: 400 g

Width: 53 mm

Height: 31 mm

Depth: 25 mm

Main product weight: 68g

More Information
EAN8424450118269
Hight0.127
Length0.040
Width0.165
RECEIVERS - SystemReceiver Accessories
Product BrandTeleves
