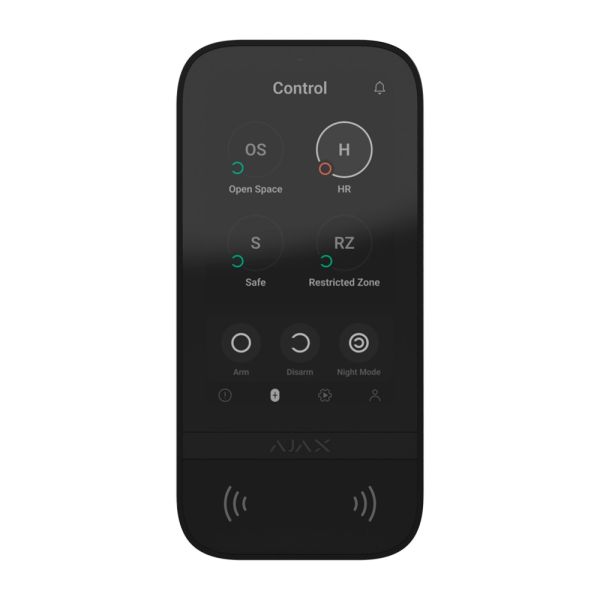

Keyboard with IPS Touch Screen and Black RDIF Reader from Ajax

Brain

Ajax

Security grade

Grade 2

Frecuency

868 MHz Jeweller

Transmission distance

≤ 1700 m in open space

Funtion

- Total arming/disarming of the system
- Group arming/disarming
- Control of automation scenarios (maximum 6)

Authentication control

- Codes (keyboard or user)
- RFID reader for keychains and Ajax cards
- Mobile phone via Bluetooth

RFID technology

Mifare DESFire® EV1, EV2 (ISO14443-А 13,56 MHz)

Feeding

2 options:
- 6 AA 1.5V Lithium batteries with an approximate duration of 1.5 years.
- External 12 VDC power supply + batteries

Panic button

Configurable:
- Panic
- Fire (silence alarm)
- Urgent help

Notifications

Sound notifications by:
- Delays
- Door opening
- Alarms
Instant malfunction notifications

Anti-sabotage

- Tamper
- Fixing screw
- Automatic lock in case of unauthorized access

LED indicator

To indicate security mode status

Screen

5 inch IPS touch

Screen resolution

480 × 854 px

Interface modes

day and night

Compatibility with center panels and repeaters

Compatible with Ajax Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G) and ReX 2

Dimensions

172 (Al) x 820(An) x 26 (Fo) mm

Temp. functioning

-10º C ~ 40º C

Weight

327 g

Cover material

ABS plastic

Color

Black
