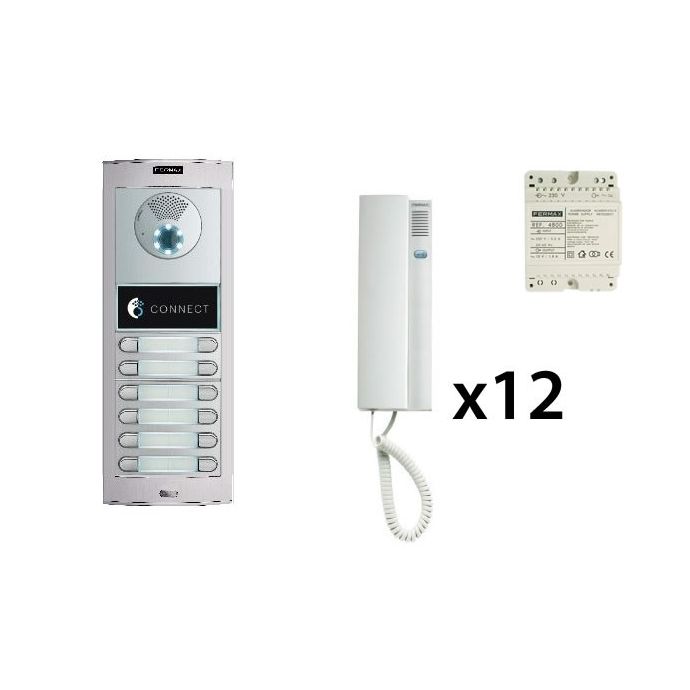

Kit duox connect for 12 homes with telephones

The kit for 12 houses of Fermax has everything necessary to realize our installation of electronic doorman in a building of 12 houses.

What does this Fermax kit include?

• Street sign with twelve pushbuttons 73910.
• Embedding box.
• 12 electronic telephones 34440.
• 4800 Feeder.
• Feeder + Filter 4825.
• 2 Duox line adapters 3255.

What technical features does the 34440 phone have?

• Auto-start: This function is possible with the board of its own block, if the board is at rest, programmed as "0" and there is some talk channel available.
• Screwed on surface.
• Power: 18 Vdc
• Door release button and concierge call.
• Selectable ring tones.
• Private communication. Secret of conversation.
• Consumption:
• At rest: 15 mA.
• Active without audio: 112 mA.
• Communicating tone: 117 mA.
• Active audio: 125 mA
• Tone monitoring: 271 mA

What is a Duox line adapter used for?

At DUOX installations, a line adapter device must be installed. Its function is the adaptation of the transmission line. It has a bridge to make different adaptations depending on the type of installation.

Small size allows installation in electrical registers. They can be bolted directly to the wall.
