Kit Duox Connect for 18 Homes with Electronic Telephone by Fermax

Technical Specifications of the Duox Kit for 18 Homes with Electronic Telephone

The Fermax kit for 18 homes has everything necessary to carry out our installation of an electronic doorman in a building with 18 houses.

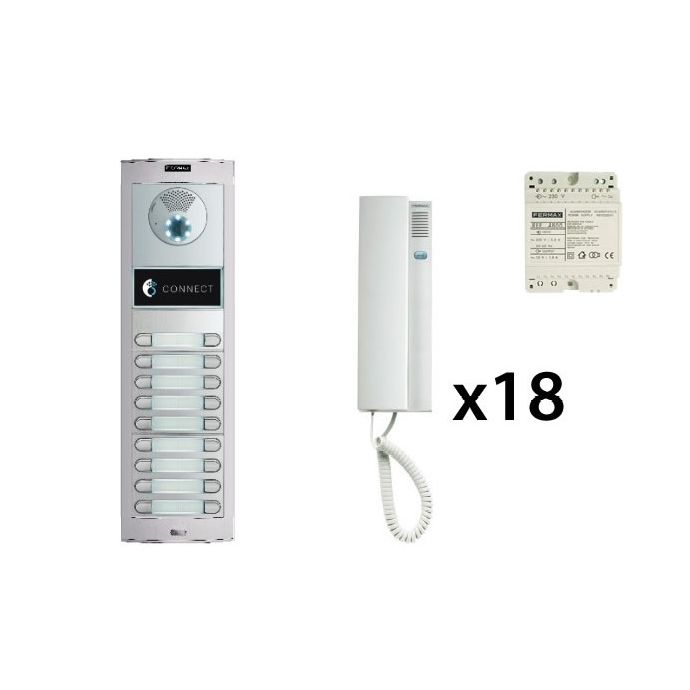

What does this Fermax kit include?

• Street sign with eighteen pushbuttons 73910.
• Embedding box.
• 18 electronic telephones 34440.
• 4800 Feeder.
• Feeder + Filter 4825.
• 2 Duox line adapters 3255.

What technical features does the 34440 phone have?

• Auto-start: This function is possible with the board of its own block, if the board is at rest, programmed as "0" and there is some talk channel available.
• Screwed on surface.
• Power: 18 Vdc
• Door release button and concierge call.
• Selectable ring tones.
• Private communication. Secret of conversation.
• Consumption:
• At rest: 15 mA.
• Active without audio: 112 mA.
• Communicating tone: 117 mA.
• Active audio: 125 mA
• Tone monitoring: 271 mA

What is a Duox line adapter used for?

At DUOX installations, a line adapter device must be installed. Its function is the adaptation of the transmission line. It has a bridge to make different adaptations depending on the type of installation.

Small size allows installation in electrical registers. They can be bolted directly to the wall.
