Kit Mast Amp. 1in UHF/VHF 30dB LTE + 24Vdc Power Supply

SKU
ENGAM6105KL
Brands: Engel Axil
€25.86 Tax included
Engel Axil
Availability: In stock
24/48 Hours

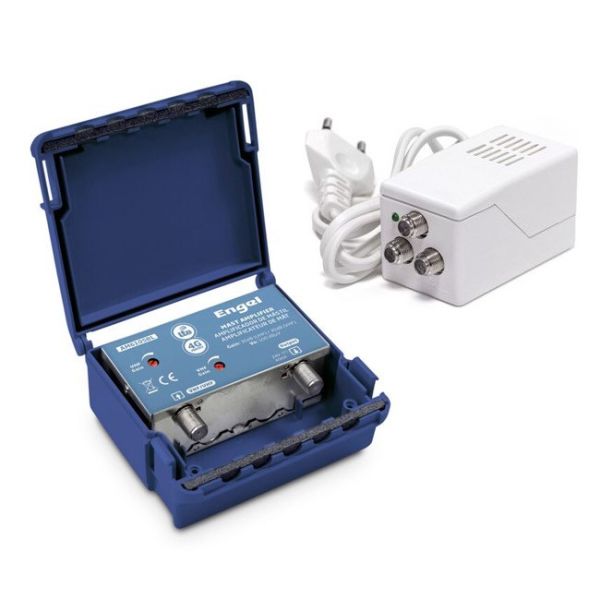

Engel AM6105KL Mast Amplifier Kit 1 Input UHF/VHF 30dB + 24Vdc Power Supply

Engel kit consisting of AM6105BL mast amplifier plus AL6120 power supply. The amplifier has 1 input for UHF/VHF with 30dB of gain and supports up to 100dBμV of output, with LTE filter (40-790MHz). The power supply supplies 24Vdc 55mA and has 2 outputs to distribute to the TV outlets.

With this kit you can amplify the DTT signal from the antenna. The amplifier is housed in an ABS plastic case that protects it from the rain, thus allowing it to be installed on the antenna mast. The power supply is really compact, perfect for installing in electrical registers without taking up space. Kit recommended for TV distribution in a single-family home



Kit 1 Input UHF/VHF 30dB LTE Mast Amplifier + 24Vdc Power Supply

What technical specifications does the Engel AM6105KL Kit have?

  • Inputs: 1 (BIII / UHF)
  • Frequency: 160-240MHz / 460-790 MHz
  • Gain: BIII: 30dB / UHF: 30dB
  • Gain regulation range: 0-20 dB
  • Maximum output level: 100 dBμV
  • Power / consumption: 24V / 40mA
  • Noise factor: VHF: 5 / UHF: 4
  • Connection: Type "F" connectors
More Information
EAN8413173454327
Hight0.160
Length0.070
Width0.110
DTT SystemDTT Amplifier
SERIES DTTKit
ColorBlue
TypeMast amplifier
EntornoExterior
Input signalUHF, VHF
# Inputs1
Outputs2
Gain30
Max. output level Ganancia (dB/uV)100
LTE compatibleNo
Current bypassTerrestrial
Product BrandEngel Axil
