Kit Plate + Cora Flush Mount Box + Fermax Power Supply

SKU
FERKITCORA
Brands: Fermax
€721.62 Tax included
Free shipping
(Iberian Peninsula)
Fermax
Availability: On request
1 to 7 days

Kit Connect Duox Panel + Flush Box Cora Series + Power Supply from Fermax

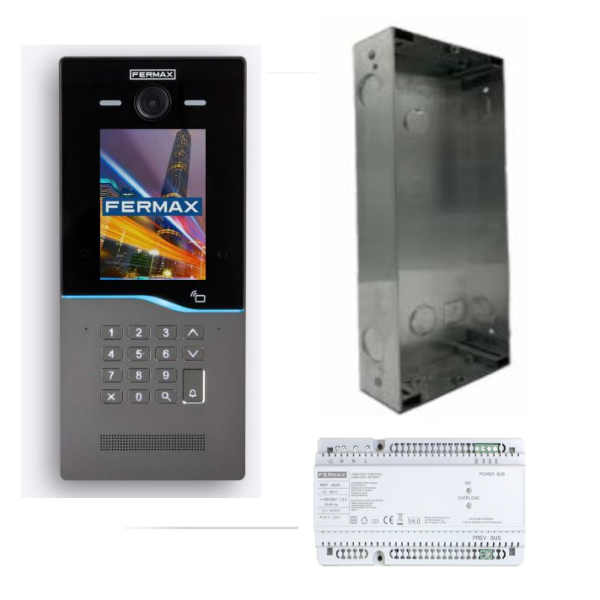

Looking to improve the security and comfort of your home? We have an excellent solution. Cora represents an elegant and aesthetic solution presented in this kit consisting of Fermax DUOX PLUX 7700 door station, 7703 flush box and 4825 power supply. This video door entry kit is ideal for those who want to control access to their home in a simple and efficient way.

The Fermax 7700 panel is the heart of the system. It has an elegant and modern design, it will look great at the entrance of your home. It is one of the most interactive panels on the market, both for the installer and the user. Its interface is very intuitive, it has a 5" high brightness color screen, mechanical keypad and a wide variety of functions to configure.

The 7703 flush-mount box will help us to perfectly integrate the board into the wall, without cables in sight or protruding elements, maintaining a professional and tidy appearance. Its dimensions are 280x1155x45mm and it has circular markings for easy cable access.

The kit also includes the 4825 filter feeder, which provides the power necessary for the entire system to function optimally. It is compact and efficient, ensuring reliable and robust performance.

Technical Specifications of the Connect Duox Plate Kit + Cora Series Flush Mount Box + Fermax Power Supply

Technical specifications of the Connect Duox Plus Cora Plate

Note:The CORA board is not compatible with the iLOFT phone, in any of its current or future versions.


Feeding

-  Nominal : 24Vdc NON-POLARIZED (polarization is not taken into account during installation). It can be powered directly from the DUOX bus.

Environmental

- Operating  temperature : [-25ºC, +55ºC].

- Relative  humidity (non-condensing): [5%, 95%].

- Watertightness  rating (IP): 65

Mechanics

-  Dimensions

Product height (mm)

Product width (mm)

Product depth (mm)

Deep (what protrudes from the surface including the box)

Deep (what sticks out recessed)

295,5

130

27,6

30

10




-   Degree of impact resistance (IK): 08

Electrical

Connect

State

Maximum consumption (mA) at 24V

Maximum consumption (mA) at 18V

Start-up

280

370

Repose

200

320

Screen on

260

425

Call

365

650

Conversation

490

740

Call forwarding

500

780

 Camera

-  Angles : H=120º; V=80º.

- Color night  vision through white LEDs. As it has LEDs, no additional illumination is required.

- Camera  resolution : 1280 x 720 pixels

- Video  resolution on monitor:

- Premium  Video (default option on 7" monitors): 720 x 480

- Standard  Video : 368 x 288

Display

-  Size : 5" in vertical format 4:3

-  Resolution : 640 x 480 pixels

Technology: DUOX

Weight: 1,512 kg

Dimensions of the packed product: 5x43,9x17 cm

EAN 13: 8424299077000



Technical specifications of the Cora S6 flush-mounted box

Tecnology: GENERICA

Product measurements: 280x115x45 mm

Weight: 0,451 kg

Dimensions of the packed product: 4,5x28x11,5 cm

EAN 13: 8424299077031



4825 Feeder + Filter technical specifications

Tecnology: DUOX

Product measurements: 90 x 175 x 60 mm

Peso: 0,528 kg

Dimensions of the packed product: 6,5x18,1x9,6 cm

EAN 13: 8424299048253

More Information
Hight0.000
Length0.000
Width0.000
ACCESOS - SISTEMADUOX PLUS
ACCESOS - SERIECora
ColorSilver
Color Portero/VideoporteroColor
TypeComplete Kit
Product BrandFermax
