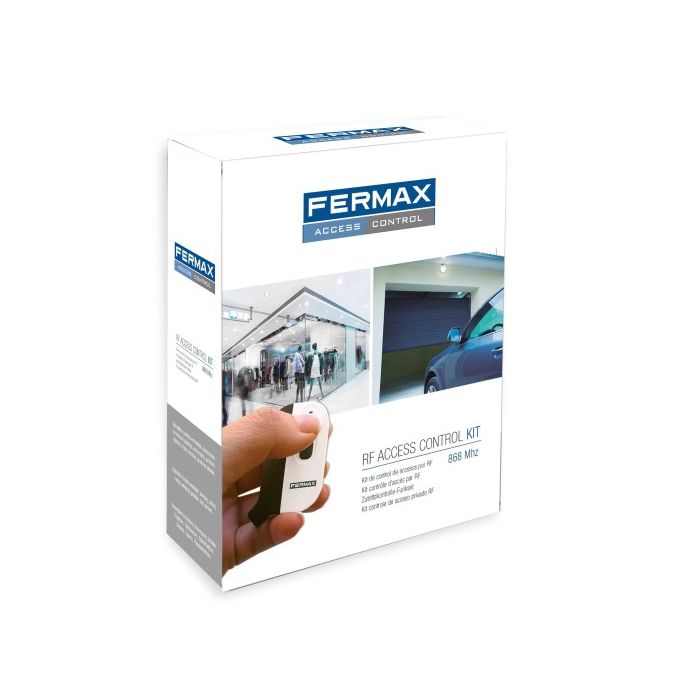

Kit RF 868 MHz shops and garages 5249 Fermax

RF Kit Fermax 5249 for shops and garages

This kit allows opening a door to a distance of up to 100 meters thanks to RF control and receiver housed in the door, that upon receiving the signal would trigger the opening of the door.

The control includes two buttons that will also open the door, trigger a second function like switching a light or air conditioning, opening a second door.

This kit has the following technical characteristics:

• He works at a frequency of 868,35MHz
• It has a high security rolling code
• Memory 500 codes
• 2 relays (Relay 1 (single) and Relay 2 (monostable / bistable))
• Supply 12 / 24Vac / dc ± 10%
• 1A relay contacts
• rest consumption / operation: 60mA / 90mA
• Operating temperature -20 to + 85 ° C
• IP54 (with cable glands IP65)
• dimensions 63x74x25mm

The kit includes:

• RF receiver fed 12/24 Vac / dc, which allows management of up to 500 868Mhz RF control codes.
• RF control has two buttons for operating the door opening. Each issuer is marked with the identifier code in the command, which is necessary to register in the receiver.
• Feeder 4800, and 1.5A 12VAC

This kit radio frequency is used in shops and garages that have a blind to get in, and have an engine that will allow the opening by the RF receiver.
