Kit UHF 34dB LTE 5G Mast Amp. + Power Supply

Name: Kit UHF 34dB LTE 5G Mast Amp. + Power Supply
Brand: Ikusi
SKU: IKU1328
Price: 41.81 EUR
Availability: InStock

SKU

IKU1328

Brands: Ikusi

€41.81 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

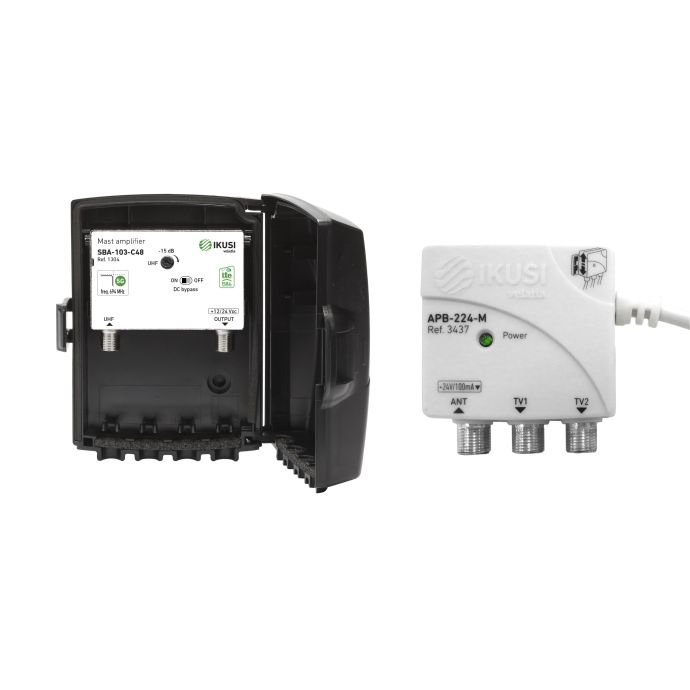

Ikusi JSBA-103-C48 Kit: UHF 34dB LTE 5G Mast Amplifier + Power Supply

Ikusi kit for DTT signal amplification in a single-family home with a single terrestrial antenna.

Ikusi SBA-103-C48 Mast Amplifier with 1 UHF input (470-694 MHz) with 34dB gain and 113dBμV maximum output. Adapted to the 2nd Digital Dividend with integrated 5G LTE filter. It admits current passage to feed active antennas.

Ikusi APB-224-M power supply of 24V 100mA and 2 RF outputs, dimensions: 50x50x25 mm.

Details

Kit consisting of UHF 34dB LTE 5G Mast Amplifier + 24V Power Supply

What technical specifications does the Ikusi SBA-103-C48 Mast Amplifier have?

Model: SBA-103-C48
Reference: 470-694 MHz
Input: 1 UHF
Departure: 1
Gain:> 34 dB
Gain regulation: 0-15 dB
Noise figure: <3 dB
Output level (DIN 45004B IMD-60dB): 113 dBμV
Supply voltage: 12/24 Vdc - 60/70 mA
Current pass: Yes
Operating temperature: -10 ... +60 ºC
Protection index: IP54
Dimensions: 96 x 125 x 46 mm
Weight: 0.370 kg

What technical specifications does the Ikusi APB-224-M Power Supply have?

Model: APB-224-M
Reference: 3437
Regulation time: switched
Outputs: 2
Mains voltage (50 Hz): 100-240 Vac
Output voltage: 24 Vdc
Current max. output: 100 mA
Frequency band: 47-862 MHz
Insertion attenuation: <4 dB
Yield:> 70%
Dimensions: 50 x 50 x 25 mm
Weight: 0.175 kg

More Information

More Information
EAN	8435136413288
Hight	0.190
Length	0.060
Width	0.130
DTT System	DTT Amplifier
MANUFACTURER SERIES DTT	Kit
Type	Mast amplifier
Entorno	Exterior
# Inputs	1
Outputs	2
Gain	34
Max. output level Ganancia (dB/uV)	113
LTE compatible	No
Product Brand	Ikusi
