Land Line Amplifier 1 Input 2 Outputs 18dB QuiCoax F by EK

SKU
EK111017
Brands: EKSELANS
€42.23 Tax included
Availability: On request
1 to 7 days

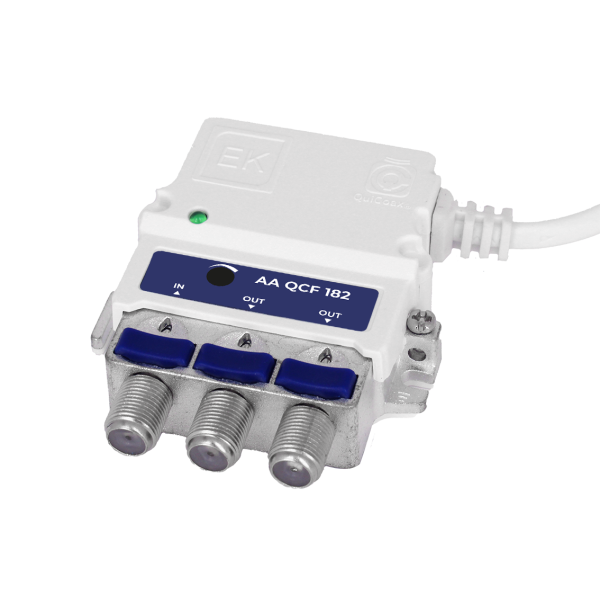

EK AA QCF 182 Line Amplifier 18dB with 1 Input and 2 outputs QuiCoax

We present this line amplifier, whose use is ideal for applications where we need to improve the TV signal in residential environments, providing good quality reception on multiple TV sets within a home.

It has 1 input and 2 outputs of 110dBuV, covering the frequency spectrum from 47 to 694MHz. It has a gain of 18dB. It incorporates the patented system of EK QuiCoax F, with which we can connect the cable to the inputs / outputs easily by simply removing the F connectors, but also offers the possibility of connecting via F connector F. The F connectors are inserted. Enjoy all the advantages offered by this amplifier.

It can be mounted on DIN rail or wall mounted. It is very easy to assemble.



-
+

Technical Specifications QuiCoax F Line Amplifier with 1 Input and 2 Outputs by EK

REFERENCE   AA QCF 182
Code   111017
Tickets N. 1
Departures N. 2
Frequencies MHz 47 -694
Revenue dB 17
Regulation dB 10
DIN 45004B output level dBµV 2 x 110
Return losses dB >10
noise figure dB <3
Feeding V 100-240
power consumption W 0,9
More Information
EAN 8436597791960
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT Amplifier
MANUFACTURER SERIES DTT F-connector
Color White
Type Indoor home amplifier
Entorno Interior
Input signal FM, UHF
# Inputs 1
Outputs 2
Gain 18
Max. output level Ganancia (dB/uV) 110
LTE compatible No
Current bypass Terrestrial
Product Brand EKSELANS
