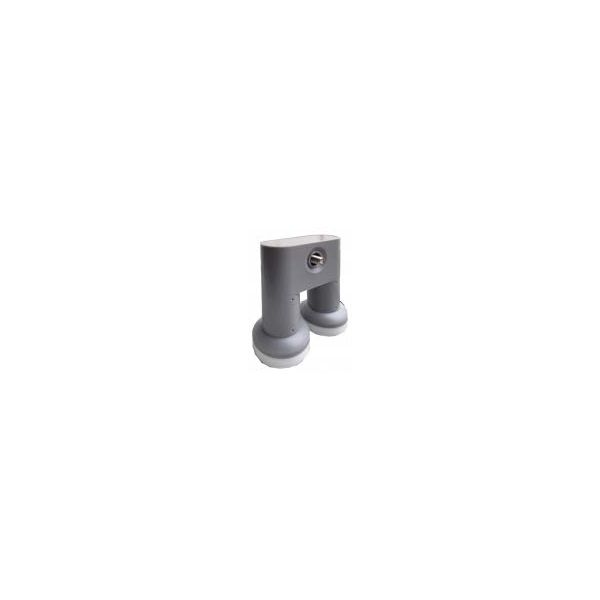

6º single monoblock LNB converter for receiving satellite signals with 1 output.
It can be used to receive the broadcast of any Astra and Hotbird satellite with the same dish. Compatible with any offset dish.
It has high performance with a low noise factor and high gain, which guarantees quality reception.
|
Frecuencia de entrada Input frequency |
Banda baja / Low band: 10.7 ÷ 11.7 GHz Banda alta / High band: 11.70 ÷ 12.75 GHz |
|
Frecuencia del oscilador local Local oscilator frequency |
Banda baja / Low band: 9.75 GHz Banda alta / High band: 10.6 GHz |
|
Frecuencia de salida Output frequency |
Banda baja / Low band: 950 ÷ 1.950 MHz Banda alta / High band: 1100 ÷ 2.150 MHz |
|
Nº de salidas Number of outputs |
1 (universal / universal) |
|
Ganancia Gain |
55 dB (min.) / 68 dB ( max.) |
|
Impedancia Impedance |
75 Ω |
|
Figura de ruido Noise figure |
1.2 dB ( typ. ) |
|
Aislamiento entre polarizaciones Cross polar discrimination |
18 dB |
|
Alimentación y señales de control Supply voltage and control signals |
13 ÷ 18 V, 22 KHz |
|
Rango de temperatura de trabajo Operating temperature range |
-40 ÷ 60 ºC |
|
Consumo Current consumption |
120 mA (max. ) |
|
Tipo de conector de salida Output connector |
1 x “F” Hembra / Female |
|
Peso Weight |
280 g |
|
Selección de entrada Input selection |
DiSEqC 1.0 |
|
Salida VSWR Output VSWR |
2.5: 1 ( max. ) |
|
Polarización Polarization. |
Lineal V / H |
|
Conmutacion de Banda Band Switching. |
Banda baja / Low band: 0 KHz Banda alta / High band: 22 KHz ± 4KHz |
| EAN | 8430549071667 |
|---|---|
| Hight | 0.180 |
| Length | 0.080 |
| Width | 0.080 |
| System SAT | LNB |
| SERIE SAT | Single |
| Color | Gray |
| LNB type | Universal |
| Output number | 1 (Single) |
| Focus number | Monoblock 6º |
| Gain | >50 db |
| Product Brand | Tecatel |
