Home amplifier with CEI connector with 20 dB gain of 1 input and 2 outputs + TV 552840 from Televes

SKU
TEL552840
Brands: Televes
€34.82 Tax included
% Discount for professionals
Televes
Availability: In stock
24/48 Hours
Be the first to review this product

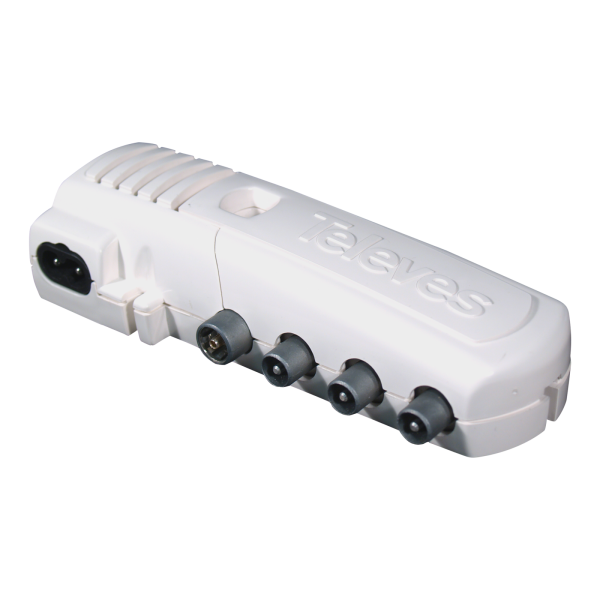

Indoor amplifier with 2 IEC outputs and gain of 20dB

Televes 552840 home amplifier is an indoor amplifier of the crocodile series, which offers a gain of 20 dB to your installation.

This amplifier has a connection that is made through CEI connectors.

This amplifier has a discreet and restrained size design, in addition to having a high-performance integrated switching source: reduced consumption (40% less than a standard amplifier).

-
+

The 552840 housing amplifier is an indoor amplifier, with 3 inputs (2 + TV) and 1 output with 20dB gain and CEI connection.

What technical characteristics does the 552840 amplifier have?

  • Discreet and restrained design
  • High-performance integrated switching power supply: reduced consumption (40% less than a standard amplifier)
  • Fully automated manufacturing and subjected to rigorous quality controls
  • Main characteristics
  • Manual gain control, protected by a hinged lid
  • Screw on the wall
  • "CEI" connectors

What technical characteristics does the 552840 amplifier have?

Entradas 3(2+1TV)
(CEI)
Margen de frecuencias MHz 47...790
Ganancia G dB 20
(12 @ TV)
Margen de regulación
de ganancia		 marg 15
Nivel de salida DIN 45004B Vout dBμV >106
IMD3 (2tones, -35dB) Vout 113
Figura de ruido N.F. dB 6
Alimentación/corriente
máx. entradas		 ON Vdc/
mA		 -
OFF -
Tensión/frecuencia de red V~/Hz 196...253/ 50...60
Consumo total AC W/mA 2,3 / 23
Índice de protección IP 20
Margen de temperatura de funcionamiento ºC -5 ... +45
More Information
More Information
EAN 8424450170595
Hight 0.120
Length 0.040
Width 0.260
DTT System DTT Amplifier
MANUFACTURER SERIES DTT CEI Connector
Color White
Type Indoor home amplifier
Entorno Interior
# Inputs 1
Outputs 2
Gain 20
Max. output level Ganancia (dB/uV) 106
LTE compatible No
Product Brand Televes
