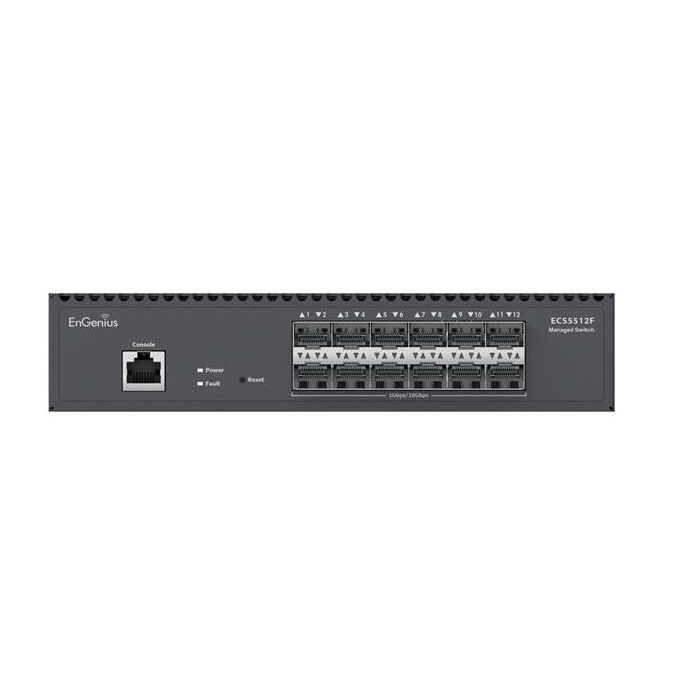

main product photo

Manageable Switch 12 Ports 10Gb SFP+ Rackable by Engenius

SKU
ECS5512F
Brands: EnGenius
€368.81 Tax included
Free shipping
(Iberian Peninsula)
% Discount for professionals
EnGenius
Availability: On request
1 to 7 days
Be the first to review this product

Engenius 12-Port SPF+ 10Gb Rackable Manageable Switch

Managed Layer 2+ Switch with 12 Gigabit SPF+ ports. These uplink ports to high-speed servers and NAS for high-performance networking.

Allows management in the cloud, via local web interface and ezMaster software.

Switch equipment for 10/100/1000 Base-T GbE applications, with enterprise-class Cloud management, ensuring maximum performance for small businesses. Control all your network equipment through EnGenius Cloud, application for PC, Smartphones and Tablets. Intelligent Could management offers us greater productivity. Artificial intelligence prevents and predicts problems before they occur, proactively improving performance.

-
+

Technical Specifications of the Engenius 12-Port SPF+ 10Gb Rackable Managed Switch

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3bz 2.5G/5GBase-T Ethernet 802.3x Full-Duplex Flow Control

Network Ports

12x SFP+ Ports

Switching Capacity

240Gbps

SDRAM

512 MB

Flash Memory

128 MB

Power Source

100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators

Power LED Fault LED

Ports

Link/Activity/Speed (per Ethernet port) Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud Local Web GUI

MAC Address Table

32K

Jumbo Frame

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

Trust Mode

Cos/802.1p DSCP CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL IPv4/IPv6 Based ACL ACL Binding Timebase ACL

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6 HTTPS IPv4 / IPv6

SSL Certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1d Spanning tree Loopback Detection Multicast Filtering IGMP Multicast Forwarding IGMP Snooping MLD Multicast Forwarding 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN Protocol-Based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IEEE 802. 3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG 802.1d Spanning tree

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS5512F Device

Weight: 1.39  kg Width: 210 mm Length: 230 mm Height: 44 mm

Package Contents

1x ECS5512F Managed Gigabit Switch 1x Quick Installation Guide 1x Power Cord 1x RJ45 Console Cable 1x Rack Mount Kit

Warranty

2 Years
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
REDES - System NOT POE
REDES - SERIE 12 Ports
Color Black
Network Equipment Switch
Ports 12
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand EnGenius
Reviews
Write Your Own Review
You're reviewing:Manageable Switch 12 Ports 10Gb SFP+ Rackable by Engenius
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Switch Gestionable 12 Puertos 10Gb SFP+ Enracable de Engenius 558.5 KB Download
