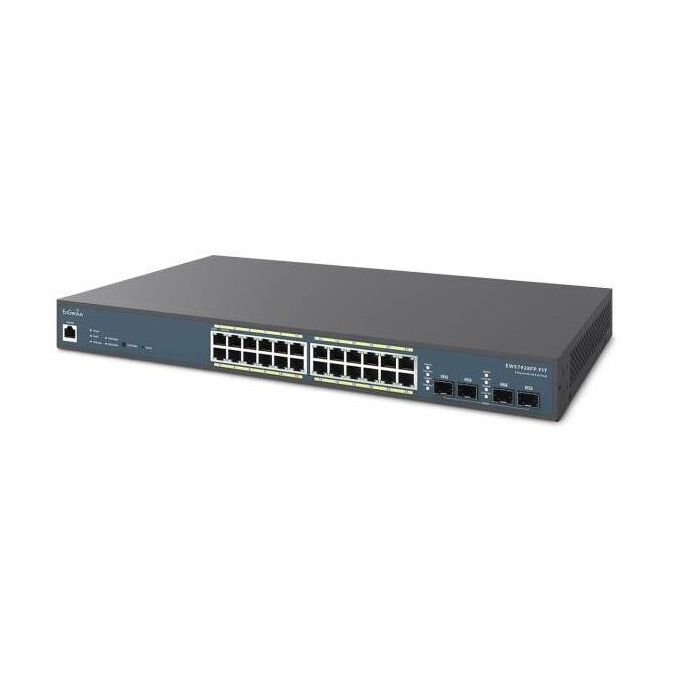

Manageable Switch 24 Ports 1Gb POE and 4 SFP 1.25GB 410W by Engenius

SKU
ENGEWS7928FP-FIT
Brands: EnGenius
€449.20 Tax included
Free shipping
(Iberian Peninsula)
EnGenius
Availability: On request
1 to 7 days

Engenius 24-Port 1Gb POE+ Managed Switch with 4SFP 410W

This Layer 2+ managed switch is designed to meet the needs of modern business networks that require efficiency and flexibility. It features 24 Gigabit Ethernet ports with 410W PoE+ support, so you can power different devices such as IP phones, access points, IP cameras. In addition, it has 4 SFP ports for uplinks, facilitating high-speed fiber optic connections.

This switch is very versatile in network management. It offers different management options, allowing small businesses to choose between cloud management through the FitXpress application or through a local FitController controller.

Ideal for environments that require a robust and scalable network infrastructure, such as offices where multiple PoE devices need to be connected. With the PoE connection, we can power devices via the Ethernet cable that are compatible with PoE+, such as wireless access points, IP cameras and VoIP phones.

Its configuration is simple to create a reliable and efficiently managed network from scratch. Plug&play hardware controller for applications, up to 100 local devices, allowing to monitor, manage and solve problems locally.

clear95 / 5.000Resultados de traducciónResultado de traducciónEngenius 24-Port 1Gb POE+ 4SFP 410W Managed Switch Technical Specifications

Technical specifications

Supported standards on 802.3ports 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
Control de flujo 802.3x Full-Duplex

Puertos de red
24 10/100/1000Mbps ports
4 10/100/1000Mbps SFP ports

PoE-compatible ports
1-24 (802.3at/af)
All Gigabit Ethernet ports can output up to 30 watts

Total PoE budget
410W

Switching capacity
56 Gbps

Memoria (SDRAM)
256MB

Memoria Flash
32MB

Packet buffer memory
512KB

Address database size
8000 MAC addresses

Physical interface

Indicadores LED
Power LED PoE
LED de falla
Max LED
LAN Mode
LED PoE Mode LED


Status indicators on Link / Activity / Speedports (on each Ethernet port)

Puertos SFP
Link/Action LED

Reset button

Funciones de software

Multiple IP interface (IP aliasing)
20 IPv6 addresses

MaxTabla ARP192 ARP entries

Static
Max ARP .192 Static ARP entries

IPv4 Static Routes
Max 59 entries

IPv6 static routes
max 5 entries

Funciones de software

Interfaz IP Multiple (IP aliasing)
20 direcciones IPv6

Tabla ARP
Max. 192 entradas ARP

ARP estático
Max. 192 entradas Static ARP

Rutas estáticas IPv4
máx. 59 entradas

Rutas estáticas IPv6
máx. 5 entradas

Physical and environmental characteristics

Rango de temperatura
Operating: 32 to 122°F / 0 to 50°C
Storage: -40 to 158°F / -40 to 70°C

Humedad (sin condensación)
5% - 95%

Equipment dimensions

Dispositivo EWS7928FP-FIT
Weight: 10.62 lbs
Ancho: 17.32 "(440 mm)
Longitud: 10,23 "(260 mm)
Altura: 1.73 "(44 mm)

embalaje
Weight: 13.13 lbs
Width: 20.95” (532 mm)
Length: 13.63” (346 mm)
Altura: 3.97 "(101 mm)

More Information
Hight0.040
Length0.190
Width0.100
REDES - SystemPOE+
REDES - SERIE24 Ports
ColorBlack
Network EquipmentSwitch
Ports24
Data SpeedGigabit (10/100/1000Mbps)
PoEYes
Product BrandEnGenius
