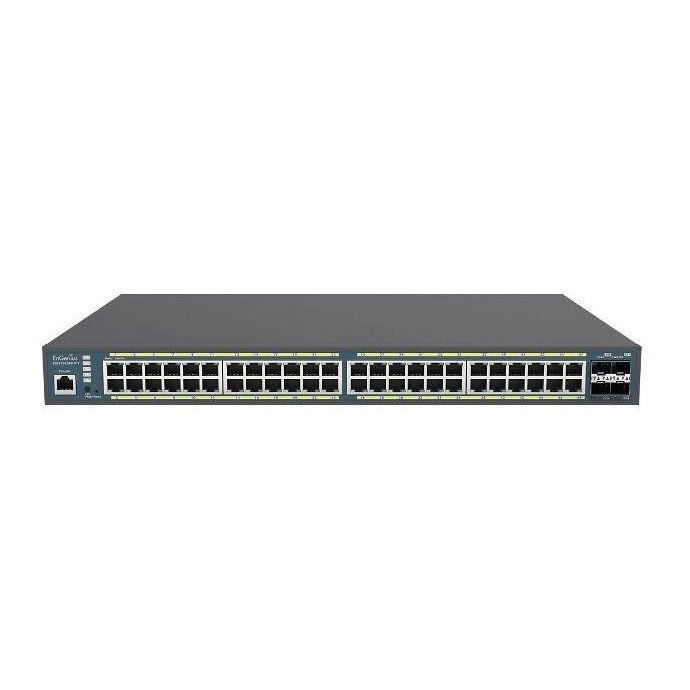

Manageable Switch 48 Ports 1Gb POE and 4 SFP 1.25GB 740W by Engenius

SKU
ENGEWS7952FP-FIT
Brands: EnGenius
€679.74 Tax included
Free shipping
(Iberian Peninsula)
EnGenius
Availability: On request
1 to 7 days

Engenius 48 Port 1Gb POE+ and 4SFP 740W 740W Managed Switch

This layer 2+ managed switch is designed to meet the needs of modern enterprise networks that require efficiency and flexibility. It has 48 Gigabit Ethernet ports with PoE+ support with 740W, so you can power various devices such as IP phones, access points, IP cameras. In addition, it has 4 SFP ports for uplinks, facilitating high-speed fiber optic connections.

This switch is very versatile in network management. It offers different management options, allowing small businesses to choose between cloud management through the FitXpress application for free without the need to purchase any controller or through a local FitController. Engenius Fit is a line of access points, switches and management options designed to get your business network in shape. It is secure and simple by integrating enterprise-grade WiFi and affordable, high-quality hardware that you can set up in minutes.

Ideal for environments that require a robust and scalable network infrastructure, such as offices where multiple PoE devices need to be connected. With PoE connection, we can power PoE+ compliant devices such as wireless access points, IP cameras and VoIP phones over the ethernet cable.

Its configuration is simple to create a reliable and efficiently managed network from scratch. Plug&play hardware controller for applications, up to 100 local devices, allowing you to monitor, manage and troubleshoot locally

Technical Specifications of the Engenius 48-Port 1Gb POE+ and 4SFP 740W Managed Switch

Technical Specifications

Standards supported on ports
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
Flow Control 802.3x Full-Duplex

Network ports
48 10/100/1000 Mbps ports
4 SFP 10/100/1000 Mbps ports

PoE compliant ports
1-48 (802.3at/af)
All Gigabit Ethernet ports can generate up to 30 watts

Total PoE budget
740W

Switching Capacity
104 Gbps

Memory (SDRAM)
256MB

Flash memory
32MB

Packet buffer memory
1.5MB

Address database size
8000 MAC addresses

Physical interface
LED indicators
Power LED
Fault LED
PoE Max LED
LAN mode LED
PoE mode LED

Port status indicators
Link / Activity / Speed (on each Ethernet port)

SFP ports
Link/Activity LEDs

Reset button

Software features
Multiple IP interface (IP aliasing)
20 IPv6 addresses

ARP Table
Max. 192 ARP entries

Static ARP
Max. 192 Static ARP entries

IPv4 static routes
max. 59 entries

IPv6 static routes
max. 5 entries

Physical and environmental characteristics
Temperature range
Operating: 32 to 122 ° F / 0 to 50 ° C
Storage: -40 to 158 °F/-40 to 70 °C

Humidity (non-condensing)
5% - 95%.

Device dimensions
Device EWS7952FP-FIT
Weight: 6.41kg
Width: 440 mm
Length: 310mm
Height: 44 mm

Packaging
Weight: 7.83Kg
Width: 548 mm
Length: 429 mm
Height: 105 mm

Warranty
1 year

More Information
Hight0.040
Length0.190
Width0.100
REDES - SystemPOE+
REDES - SERIE48 Ports
ColorBlack
Network EquipmentSwitch
Ports48
Data SpeedGigabit (10/100/1000Mbps)
PoEYes
Product BrandEnGenius
Write Your Own Review
You're reviewing:Manageable Switch 48 Ports 1Gb POE and 4 SFP 1.25GB 740W by Engenius
Your Rating
File Label Size Download
pdf Manual Switch Gestionable 48 Puertos 1Gb POE y 4 SFP 1.25GB 740W de Engenius 1.3 MB Download
