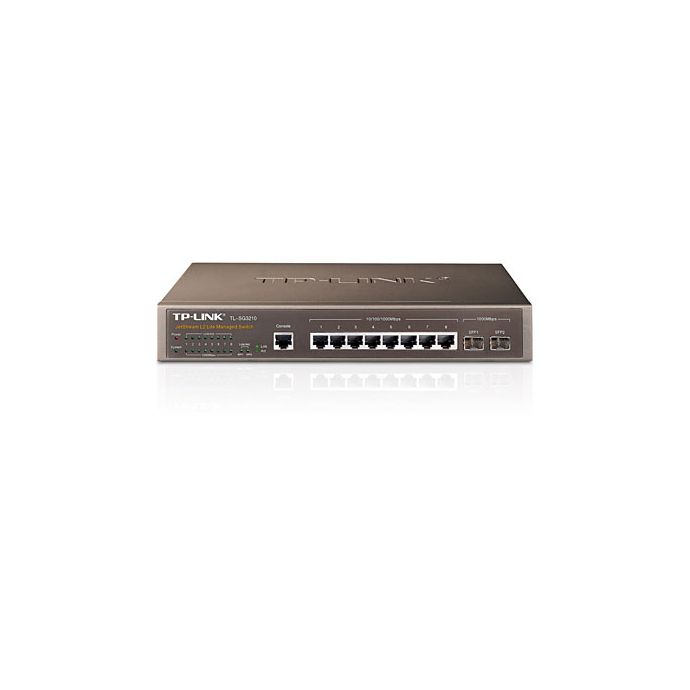

Managed Switch L2 8P Giga with 2P Combo Rack SG3210 from TpLink

SKU
TL-SG3210
Brands: Tplink
€132.98 Tax included
Availability: In stock
24/48 Hours

Managed L2 Switch with 8 TpLink SG3210 Ports

This switch has 8 RJ45 Gigabit L2 Lite JUstStream ports, and 2 Gigabit SFP slots, which ensure a very fast connection. In the RJ45 ports we can connect network devices such as PCs, other switches, network controllers, servers, etc. This switch for professional use provides security and centralized management.

It also has a Micro USB port, as well as LED indicators. Thanks to its static routing, we will achieve a much more efficient use of the network. Capable of optimizing voice and video applications.

Omada's SG3210 creates a scalable network, controlling everything from a single interface with cloud access. Both wireless and cable connections are perfect, being suitable for any use.

Dimensions: 2294x180x44mm.



-
+

Technical Specifications of the SG3210 8-Port L2 Managed Switch



CARACTERÍSTICAS DE HARDWARE/HARDWARE FEATURES
Estándares y Protocolos/Standards and Protocols IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,
IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,
IEEE 802.1x,IEEE 802.1p
Interface 8 puertos RJ45 10/100/1000Mbps/8 RJ45 10/100/1000Mbps ports
(Negociación automática/Auto MDI/MDIX)/(Auto Negotiation/Auto MDI/MDIX)
2 ranuras SFP 1000Mbps/2 SFP 1000Mbps slots
1 puerto de consola/1 console port
Medios de Red/Network Media 10BASE-T: UTP categoría 3, 4, 5 cables (100m máximo)/10BASE-T: UTP category 3, 4, 5 cables (100m maximum)
100BASE-TX / 1000Base-T: UTP categoría 5, 5e o superior de cable (100 metros como máximo)/100BASE-TX / 1000Base-T: UTP category 5, 5e or higher cable (100 meters maximum)
1000BASE-X: MMF, SMF
Cantidad de Ventiladores/Number of Fans Sin Ventilador/without fan
Fuente de Alimentación/Power supply 100~240VAC, 50/60Hz
Consumo de Energía/Energy consumption Max: 10.7W (220V/50Hz)
Dimensiones (W X D X H)/Dimensions 11.6*7.9*1.7 pulg. (294*200*44 mm)
RENDIMIENTO/PERFORMANCE
Ancho de Banda / Backplane 20Gbps
Tasa de Reenvío de Paquetes/Packet Forwarding Rate 14.9Mpps
Tabla de MAC Address/MAC Address Table 8K
Paquetes de Memoria de búfer/Buffer Memory Packets 4Mb
Jumbo Frame 10240 Bytes
CARACTERÍSTICAS DE SOFTWARE
Quality of service Support 802.1p priority CoS/DSCP
Support of 4 priority queues
Queue programming: SP, WRR, SP+WRR
Port/Flow Limitation
Voice VLANs
L2 Features GMP V1/V2/V3 inspection
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP / RSTP / MSTP
LLDP, LLDP-Med
BPDU Filtering/Guard
TC/Root Protection
New cable detection
802.3x flow control
VLAN Supports up to 4K VLANs simultaneously (from 4K VLAN IDs)
Port/MAC/VLAN based protocol-GARP/GVRP
Access Control List L2~L4 packet filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Based on time range
Security IP-MAC-Port-VID Framing
IEEE 802.1X/ MAC port-based authentication, Radio, Guest VLAN
DoS Defense
Dynamic ARP Inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
security port
Broadcast/Multicast/unknown unicast storm control
IPv6 Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
Applications IPv6 DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Management Web-based GUI and CLI management
SNMP v1/v2c/v3, supports public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
CPU monitoring
Reflex Port
Time setting: SNTP
Built-in NDP/NTDP function
Firmware update: TFTP and Web
Diagnostic System: APV
SYSLOG & Public MIBs
OTROS
Certification CE, FCC, RoHS
Package Contents switch
Power cord
Quick Installation Guide
resource CD
Mounting kit
Rubber legs
System Requirements Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating temperature: 0℃~40℃ (32℉~104℉)
Storage temperature: -40℃~70℃(-40℉~158℉)
Operating humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
More Information
EAN 6935364021634
Hight 0.400
Length 0.150
Width 0.300
RED - System NOT POE
RED - SERIE 8 Ports
Color Black
Network Equipment Switch
Ports 8
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand Tplink
