Marine Proximity Reader in Stainless Steel

SKU
FER5472
Brands: Fermax
€281.02 Tax included
Free shipping
(Iberian Peninsula)
% Discount for professionals
Fermax
Availability: In stock
24/48 Hours
Be the first to review this product

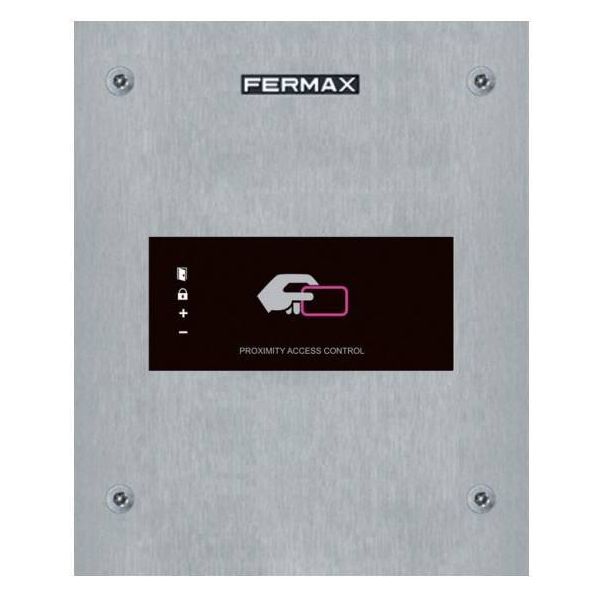

Marine Proximity Reader for Door Opening Fermax 5472

The proximity reader of the Marine range allows the doors to be opened by bringing the proximity card/key fob closer (only those authorized can perform this function). It incorporates a 2.5 mm thick anti-vandal stainless steel plate, so it can be installed both indoors and outdoors.

It is allowed to install both in flush or surface boxes. Furthermore, this reader can work in an autonomous or centralized system thanks to the configuration of dipswitches (SW2). It has a capacity of up to 400 user cards or key in autonomous mode, reaching up to 2048 in a centralized way.

-
+

Marine Series Stainless Steel Proximity Reader for Door Opening

 What are the main features of the Fermax 5472 Proximity Reader?

  • Does not require physical contact reader-card. Reading distance at 5 cm (card) or 1.5 cm (key ring).
  • Acoustic and visual information on actions.
  • Very simple manual or PC programming (card registration / cancellation).
  • Door sensor control and exit button
  • Relay output.
  • Door release activation by relay with programmable time. Programmable 1 to 99 sec.
  • Signaling LEDs (helps programming and status).

What technical specifications does the Fermax 5472 Proximity Reader have?

  • Dimensions (HxV mm): 150 x 180
  • Embedding box (HxVxP mm - included): 130 x 160 x 55
  • Surface box with visor (HxVxP mm - optional): 154 x 184 x 55
  • Environmental Protection (IP): 54
  • Shock protection (IK): 09
  • Power (V):
  • Autonomous: 12V (ac / dc).
  • Centralized: 12Vdc
  • Consumption (mA) without lock release: 90
  • Operating temperature: -15 to 55º
More Information
More Information
EAN 8424299054728
Hight 0.150
Length 0.080
Width 0.170
Color Black
Installation Outdoor
Identification EM Card/Keychain
Product Brand Fermax
