Mast Amplifier 1 UHF 38dB LTE 5G Fagor

SKU
FAG36650
Brands: Fagor
€35.48 Tax included
% Discount for professionals
Fagor
Availability: In stock
24/48 Hours
Be the first to review this product

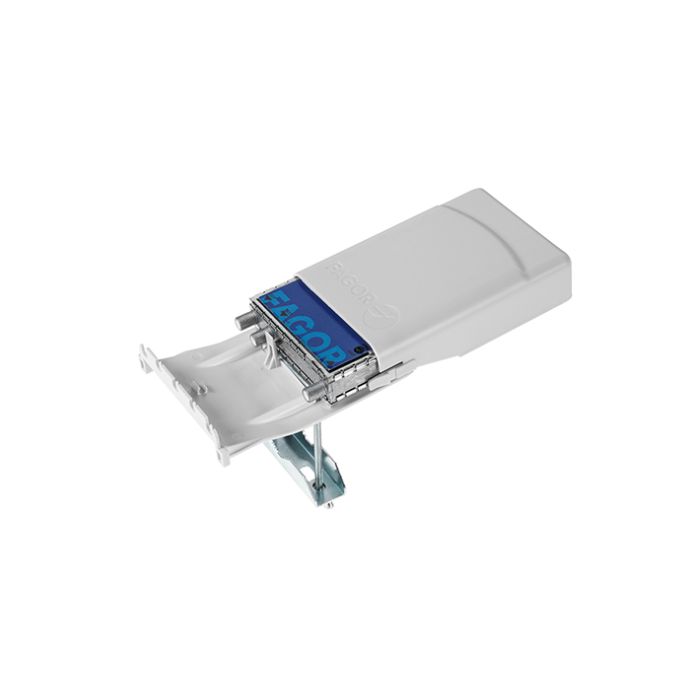

Mast Amplifier 1 UHF 38dB Fagor AML 510

1-input UHF (470-694 MHz) mast amplifier and integrated 5G LTE filter, with 38dB of gain and maximum output of 114dBμV. Amplifier with gain regulation (-15dB).

Preamp equipment with exceptional immunity to interferences and low noise figure, for correct reception of Digital TV.

Robust amplifier to be installed on a mast with a included mounting flange, dimensions 170x105x50 mm. It has a switchable DC current path.

The image may not correspond to the final product.

-
+

38dB 1-input UHF mast amplifier with 114dBμV output, with integrated LTE 5G (694MHz) filter

What are the main characteristics of the Fagor AML 510 amplifier?

  • It has independent regulation of the figure of noise.
  • Its mechanics give it an exceptional immunity to impulsive noise, a critical aspect for Digital TV reception.
  • They have switchable DC pass-current.
  • LTE ready.

What technical specifications does the Fagor AML 510 mast amplifier have?

  • Model: AML 510
  • Reference: 36650
  • Number of inputs: 1 UHF
  • Band: UHF (470-694 MHz)
  • Gain: 38dB
  • Gain regulation: 15dB
  • DIN 45004B-60 output level: 114 dBμV
  • Noise figure: 3dB
  • Out-of-band rejection: LTE2 / LTE 5G
  • Consumption: 80mA
  • DC step: 45mA
  • Dimensions: 170x105x50 mm
  • Weight: 0355kg
  • Power: 24 ± 10% Vdc
  • Operating temperature: -20 ... +60 ºC
More Information
More Information
EAN 8432589366505
Hight 0.017
Length 0.008
Width 0.011
DTT System DTT Amplifier
MANUFACTURER SERIES DTT F-connector
Color White
Type Mast amplifier
Entorno Exterior
# Inputs 1
Outputs 1
Gain 38
Max. output level Ganancia (dB/uV) 114
LTE compatible No
Current bypass Terrestrial
Product Brand Fagor
