Mast Amplifier 1in (FM/BIII/DAB/UHF) 36dB LTE 5G

SKU
TEL535620
Brands: Televes
€30.37 Tax included
Availability: In stock
24/48 Hours

Mast Amplifier 1 Input: FM/BIII/DAB/UHF 36dB LTE 5G Televes 535620

Amplifier to install on the antenna mast, with 1 single input for various terrestrial bands (FM/BIII/DAB/UHF). Adapted to the 2nd Digital Dividend with integrated 5G filter. It is powered at 24Vdc and admits power pass to feed another preamplifier or active antenna.

Outdoor amplifier for terrestrial television signals, with 36dB of gain and 113dBμV of output. If you want to amplify several bands, you can do it by mixing them beforehand with an outdoor terrestrial mixer.

The assembly of this amplifier is very simple thanks to its EasyF connection system, which does not use connectors. The equipment is protected from the elements as it is inside an ABS plastic case. It includes a plastic tie to attach it to the mast.



-
+

Mast Amplifier 1 Input (FM/BIII/DAB/UHF) LTE 5G with 36dB of Gain and 113dBμV of Output

What technical specifications does the Televes 535620 Mast Amplifier have?

Bands FM/BIII/DAB/UHF
Frequency margin MHz 88 ... 108 174 ... 254 470 ... 694
Gain dB 15 32 36
Gain adjustment range dB 0 ... 20 0 ... 20
Max.output level dBμV EN 50083 (-35dB) 122 112 123
DIN 45004B 115 115 116
EN 50083 (-60dB) 112 112 113
Noise figure dB --- 5 5
Output level regulation margin V /mA 24 / 80
Max current through inputs OFF mA -
ON 45
Protection Level IP 23
Temperature operat. limits ºC -5 ... +45
More Information
EAN 8424450214992
Hight 0.140
Length 0.050
Width 0.140
DTT System DTT Amplifier
MANUFACTURER SERIES DTT F-connector
Color Orange
Type Mast amplifier
Entorno Exterior
# Inputs 1
Outputs 1
Gain 36
Max. output level Ganancia (dB/uV) 113
LTE compatible No
Current bypass Terrestrial
Product Brand Televes
Write Your Own Review
You're reviewing:Mast Amplifier 1in (FM/BIII/DAB/UHF) 36dB LTE 5G
Your Rating
File Label Size Download

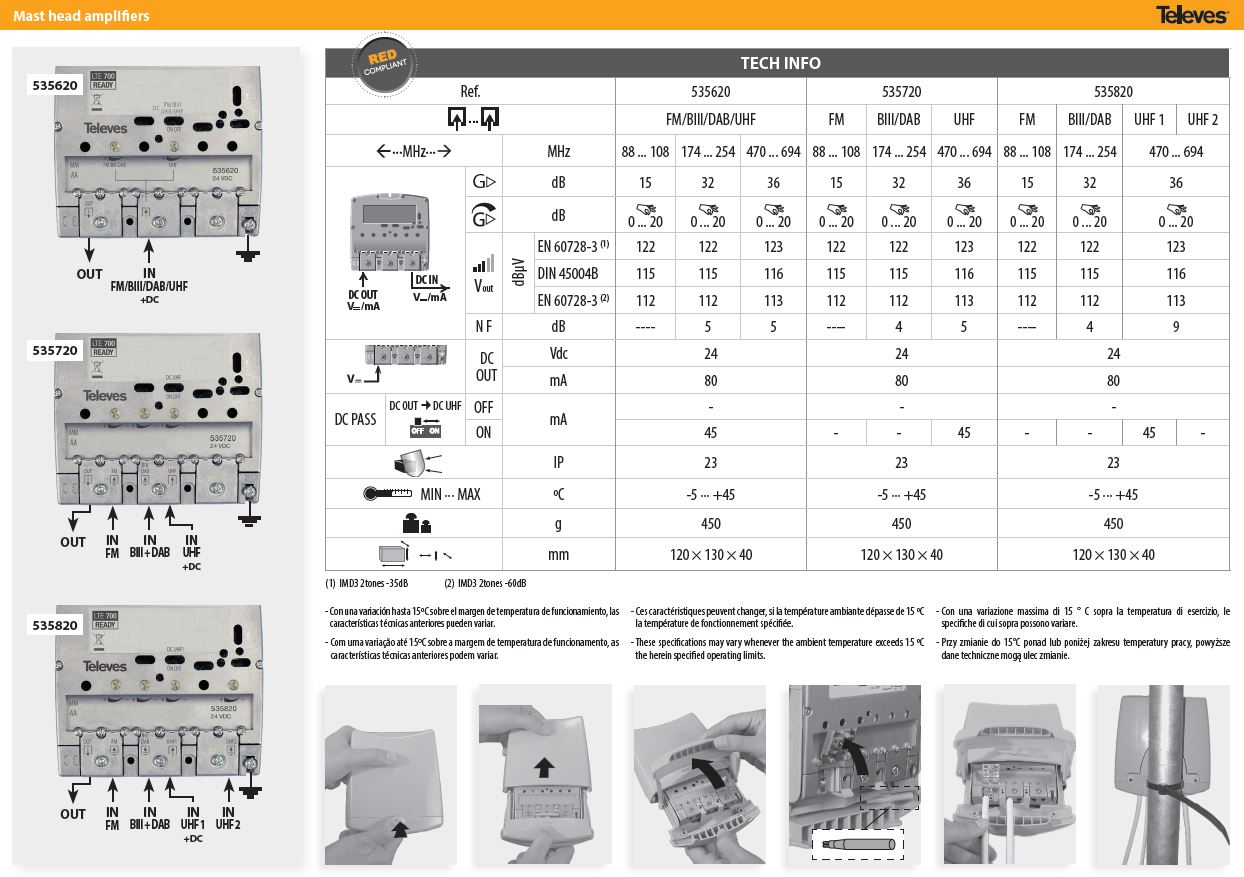

JPG Ficha técnica de Amplificadores de Mástil Terrestres 5G Televes 179.9 KB Download
