Mast Amplifier 28dB UHF-UHF-FImix LTE 5G

Name: Mast Amplifier 28dB UHF-UHF-FImix LTE 5G
Brand: Televes
SKU: TEL561421
Price: 30.87 EUR
Availability: InStock

SKU

TEL561421

Brands: Televes

€30.87 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

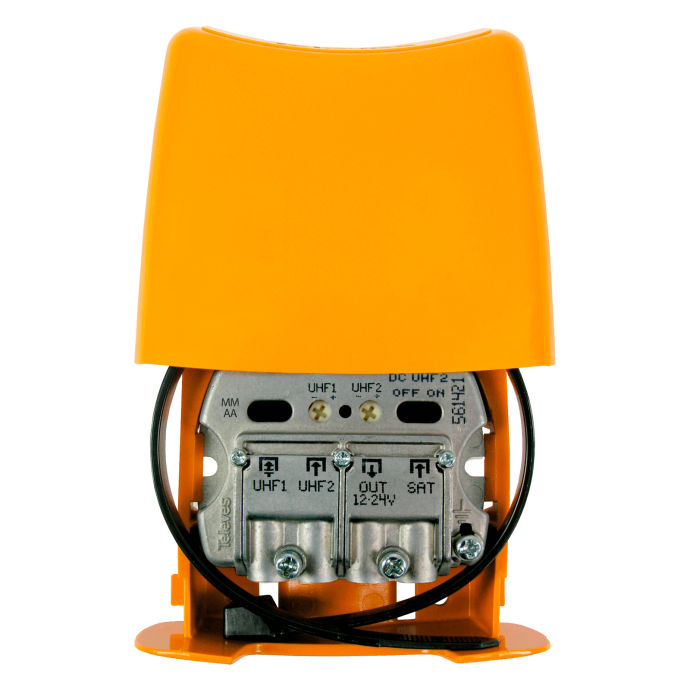

Mast Amplifier 28dB 3 Inputs (UHF-UHF-FImix) LTE 5G Televes 561421

Mast amplifier with 3 inputs UHF-UHF-FImix: the two UHF inputs are amplified at 28dB, while the FI (satellite) is only mixed. It allows DC pass in the UHF2 input and to power the LNB; It has an ON/OFF switch to power the UHF antenna.

The device can be powered at 12-24V. Its EasyF connection system simplifies installation by not requiring connectors, only the stripped coaxial cable.

Amplifier adapted to the 2nd Digital Dividend thanks to the integrated LTE700 (470-698 MHz) filter that eliminates interference with the 5G band.

Details

3-input UHF-UHF-FImix mast amplifier with 28dB gain and 5G LTE filter

What are the main characteristics of the Televes 561421 Mast Amplifier?

Separate amplification and very low noise figure, thus respecting signal quality
Ultra-small ergonomic design
EasyF connection system
Can be powered in the 12 V-to-24 V range
Fully automated manufacturing, subject to the most stringent quality controls
High-screening Zamak chassis
LTE filter to remove mobile phone interference
ON/OFF switch to allow DC pass towards one of the UHF inputs for the powering of a BOSS system
Easy mounting. Equipped with a clamp for mast mounting
Resistant ABS-plastic orange case for outdoor installation

What technical specifications does the Televes 561421 Mast Amplifier have?

Bands				UHF 1	UHF 2	SAT
Frequency margin			MHz	470...694	470...694	950...2150
Gain			dB	28		-2,5
Gain adjustment range			dB	MANUAL 0 ... 20		-
Max. output level	DIN 45004B		dB	108		-
	EN 50083			115		-
	10 CH DVB-T			-		-
Noise level			dB	6,5		-
DC Pass	DC UHF	OFF	mA	0
		ON		-	40	-
	DC SAT			-	-	300
Power supply			Vdc/mA	12-24 / 50
Protection index			IP	23
Operating temperature			ºC	-5 ... +45

More Information

More Information
EAN	8424450201718
Hight	0.090
Length	0.050
Width	0.090
DTT System	Amplificador TDT y SAT
MANUFACTURER SERIES DTT	F-connector
Color	Orange
Type	Mast amplifier
Entorno	Exterior
# Inputs	3
Outputs	1
Gain	28
Max. output level Ganancia (dB/uV)	108
LTE compatible	No
Product Brand	Televes
