Mast Amplifier Kit 1 UHF Input 1 Output 35dB with LTE2 + Ekselans Power Supply

SKU
EK051038
Brands: EKSELANS
€55.54 Tax included
Availability: On request
1 to 7 days

Mast Amplifier Kit with 1 UHF 35dB Input and Power Supply

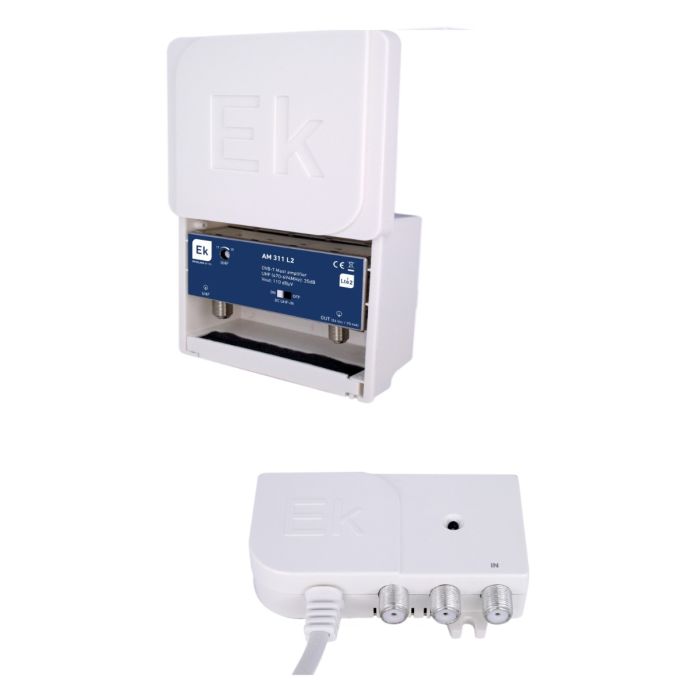

This kit consists of a amplifier of mast AM311 L2 plus a power supply FA 24 S. With this kit we can amplify the DTT signal coming from the antenna in TV installations in single-family houses.

The mast amplifier has a UHF input with 35dB gain. This amplifier has alow noise figure of less than 2dB and an excellent gain/output level ratio of 15dB. It has DC pass-through on the UHF input. It comes with a protective ABS plastic case in white color, with IP 23 protection degree. The case comes provided with a lid and cable lock. In addition, it is tiltable to make connection much easier.

On the other hand, the power supply is very small and compact with measures compatible to electrical mounting boxes. It includes a LED operation indicator that will provide high performance, with an output voltage of 24Vdc and passing loss of less than 4dB.

-
+

Mast Amplifier Kit with 1 UHF 35dB Input and Power Supply Technical Specifications



what are the properties of the AM 311 L2 amplifier?

REFERENCE



AM 311 L2

Code



051024

Tickets



UHF

Frequency range

MHz

470-694

Profit

dB



Regulation

dB



Output level (DIN 45004B)

dBµV

110

Noise figure

dB

<2

Supply voltage

Vdc



Current flow



Current consumption

mA

≤ 70

Second start / test

dB

-



what are the properties of the FA 24 S amplifier?

REFERENCE



FA 24 S

Code



052003

Exits

NO.



Frequencies

MHz

47-862

Passage losses

dB

<4

Output voltage

Vdc



Maximum current

mA



Feeding

Vac

100/240

Dimensions

mm

86 x 65 x 23



More Information
EAN 8436597793377
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT Amplifier
MANUFACTURER SERIES DTT Kit
Type Mast amplifier
Entorno Exterior
Input signal UHF
# Inputs 1
Outputs 1
Gain 35
Max. output level Ganancia (dB/uV) 110
LTE compatible Yes
Current bypass Terrestrial
Product Brand EKSELANS
