Maxi Video Door Phone Kit with 7'' Monitor 8461X

SKU
COM8461X
Brands: Comelit
€594.30 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

Quadra and Maxi Family Kit, S2

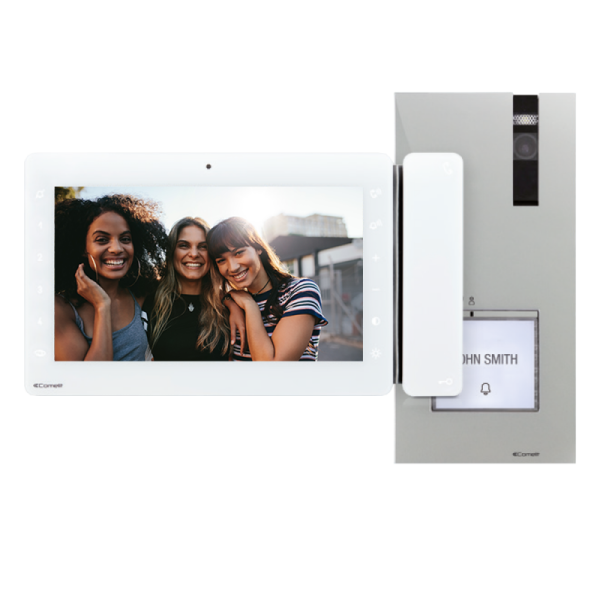

The 2-wire video door entry kit is made up of: 1 Quadra push-button external panel (Ref. 4893M), 1 Maxi color monitor (Ref. 6801W), 1 power supply (Ref. 1209), 1 embedding box (Ref. 6817 ), 1 surface support (Ref. 6820) and 1 termination terminal (Ref. 1216).

The Quadra plate is a surface plate, with an aluminum front. It has a camera and led for night lighting. It has call keys, signaling LEDs and loudspeaker volume regulation.

The monitor has a 7” color touch screen, hands-free audio. It can be adjusted in brightness, contrast and volume of both audio and ringtone. This monitor can only be used in simplebus2 2-wire installations. The monitor comes in white color with sleek lines.

The feeder has protection against overload and short circuit. It has 2 continuous voltage outputs: one for the monitor and one for the board.

This kit is ideal for single-family homes.

-
+

Technical Specifications of the Quadra and Maxi Single Family Kit, S2



GENERAL INFORMATION

Type monobloc
Height (mm) 195
Width (mm) 95
Depth (mm) 28
Product weight (g) 300
Product color Gris RAL 9006, Negro RAL9005
Wall mount Yes
COMPATIBLE SYSTEMS
Simplebus 2 audio/video kit, power supply art. 1209 yes
AUDIO FEATURES
Microphone 6mm (Ø),Omnidirectional
Speaker 36mm (Ø), 8 Ohm, 1W

CAMERA FEATURES

Camara Colors
sensor type 1/4" CMOS
Lens optical dimensions (mm) 2,1

ELECTRICAL CHARACTERISTICS

Power supply type Power supply from the video door entry bus
supply voltage 33VDC
maximum absorption (W) 8,25
SETTINGS
speaker volume yes
microphone volume yes
More Information
EAN 8023903288612
Hight 0.310
Length 0.380
Width 0.900
System Simplebus (2 threads)
SERIE MAXI
Color White
Color Portero/Videoportero Color
Type Complete Kit
Product Brand Comelit
Write Your Own Review
You're reviewing:Maxi Video Door Phone Kit with 7'' Monitor 8461X
Your Rating
File Label Size Download
pdf Ficha Técnica Kit Unifamiliar Quadra y Maxi 8461X 1.3 MB Download
