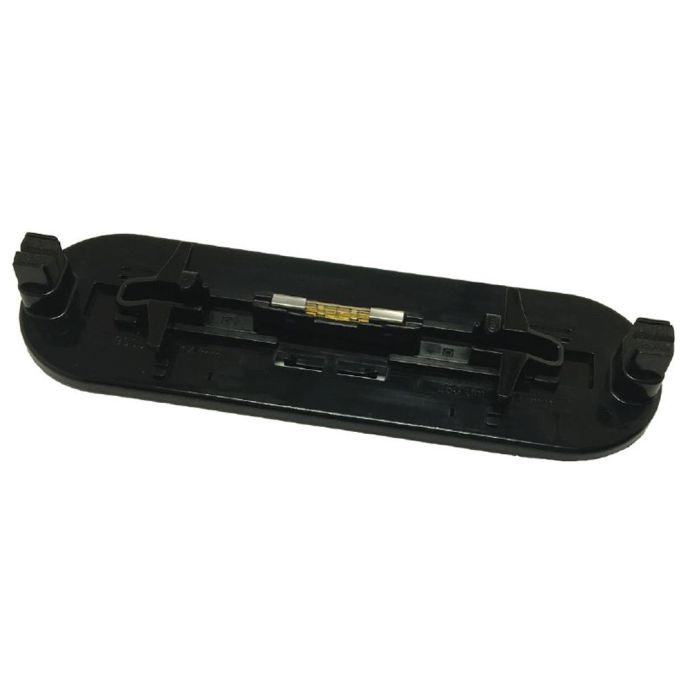

Mechanical Splice Tool for 35GTEFAST

GTLAN GTEFAST Mechanical Fiber Optic Splice Tool

What technical characteristics does the GTLAN 35GTEFAST splice have?

• They hold the two optical fibers aligned for an indefinite period of time without any alteration.
• The splice loss is stable over time and unchanged due to changes in environmental or mechanical conditions.
• The splice can be reopened and the fibers realigned.
• The realignment includes cleaning the end of the fiber, new cutting and reinserting it into the same or new splice
• Once a mechanical splice is made, it can become permanent since it is environmentally and mechanically stable.

What advantages does the GTLAN 35GTEFAST mechanical splice offer?

• The patented OFP CONRAD mechanical splice is very economical, very fast, easy to install and also reusable.
• Does not require special assembly tool.
• Meets the standards of Telcordia GR-326-CORE, Telcordia GR-1081-CORE, IEC 61300.

What technical specifications does the GTLAN 35GTEFAST splice have?

• Compatibility: 9/125, 50/125, 62.5 / 125 fibers
• Insertion loss: ≤ 0.2 dB
• Reton Loss: ≥ 50 dB
• Tensile strength: Max. 400g.
• Thickness: 0.9mm
• Measurements: 40 x 4 x 4mm
